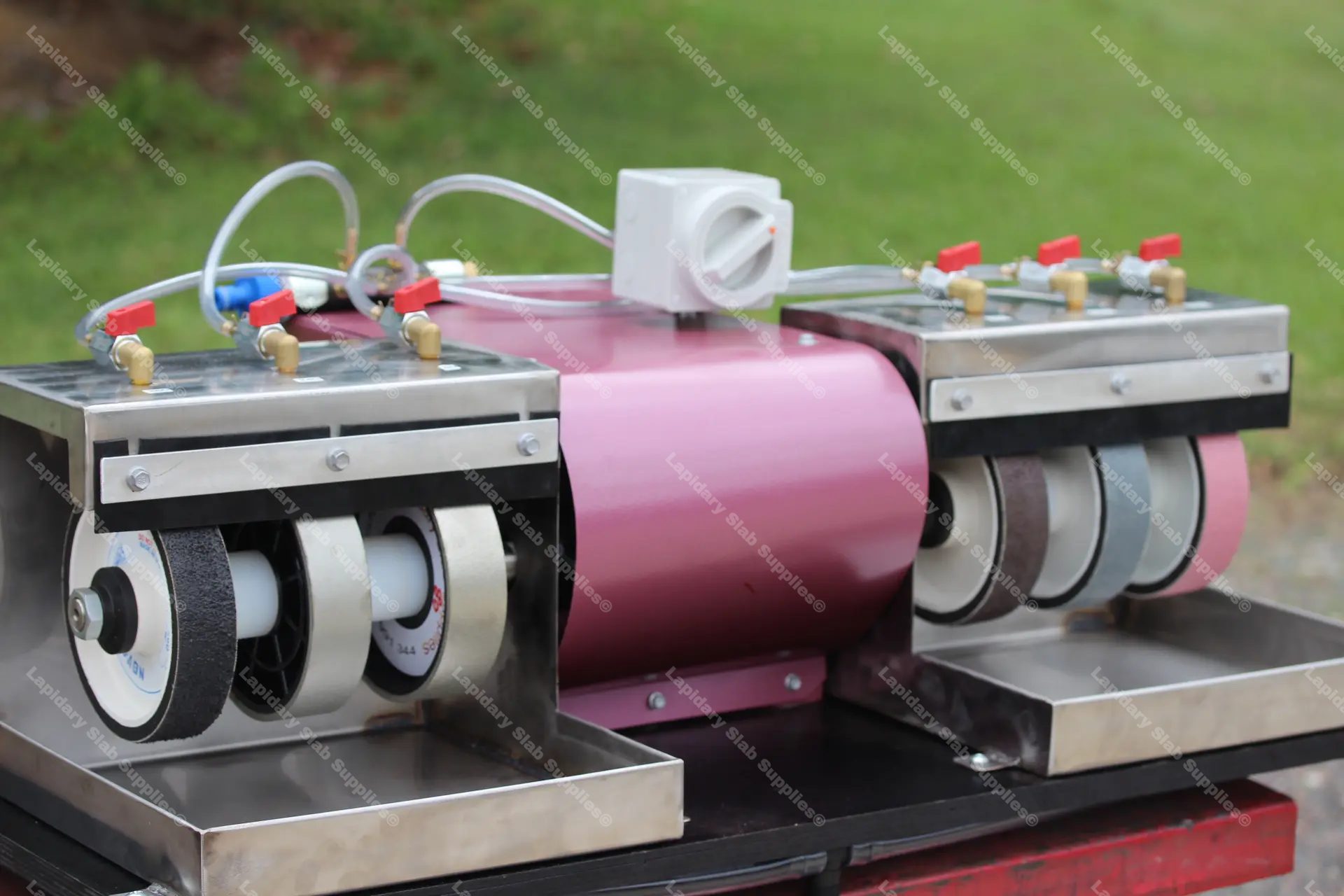

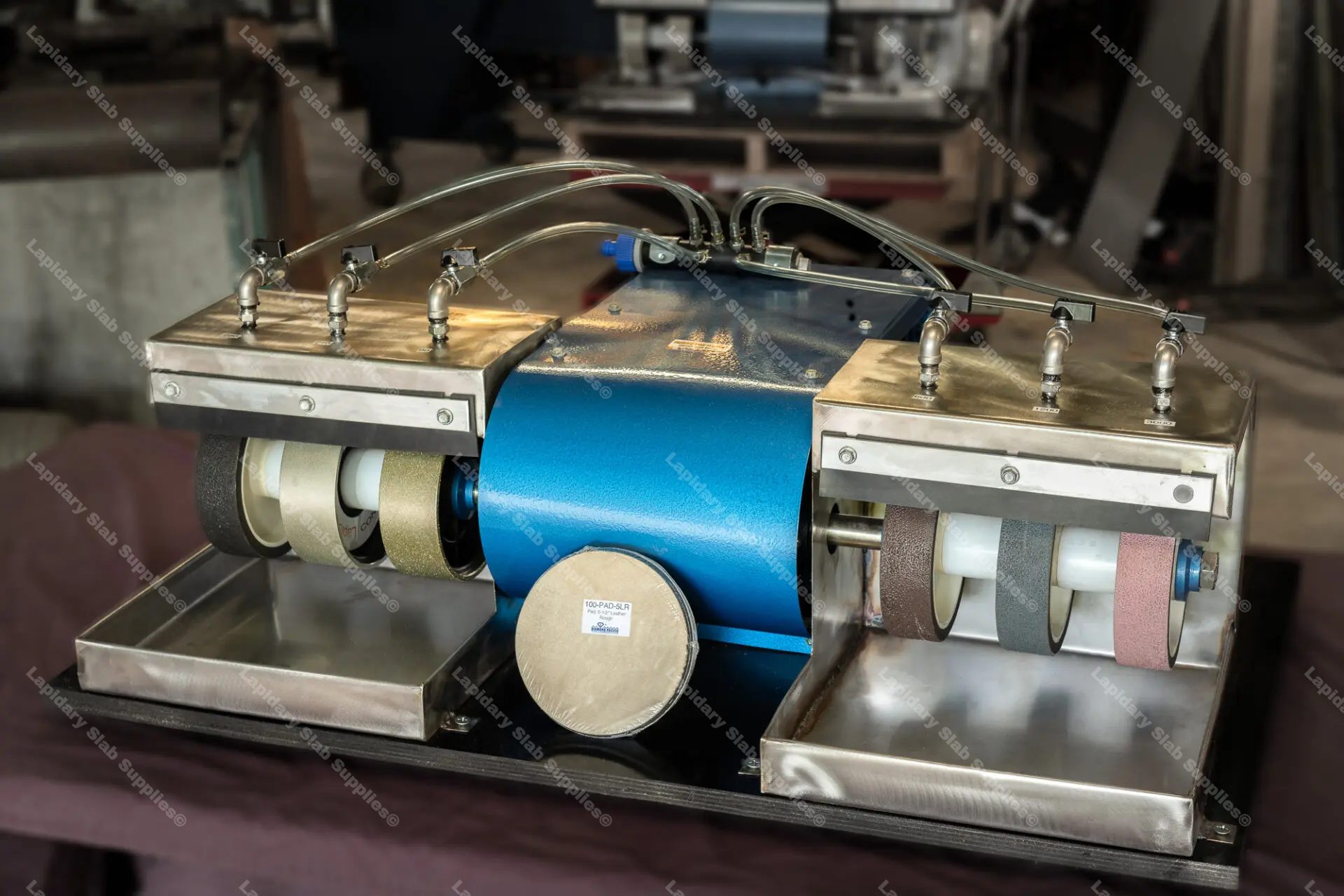

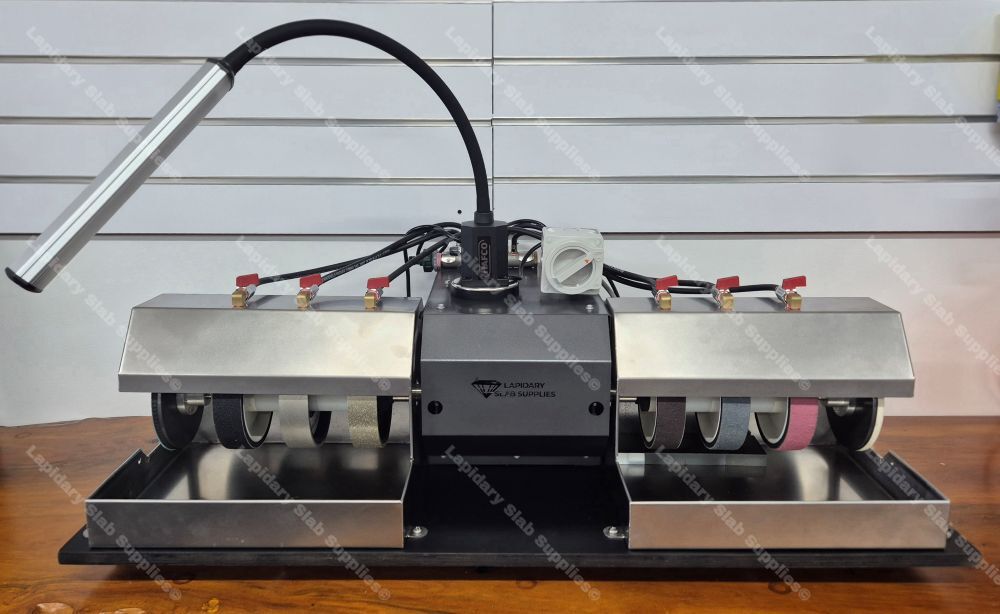

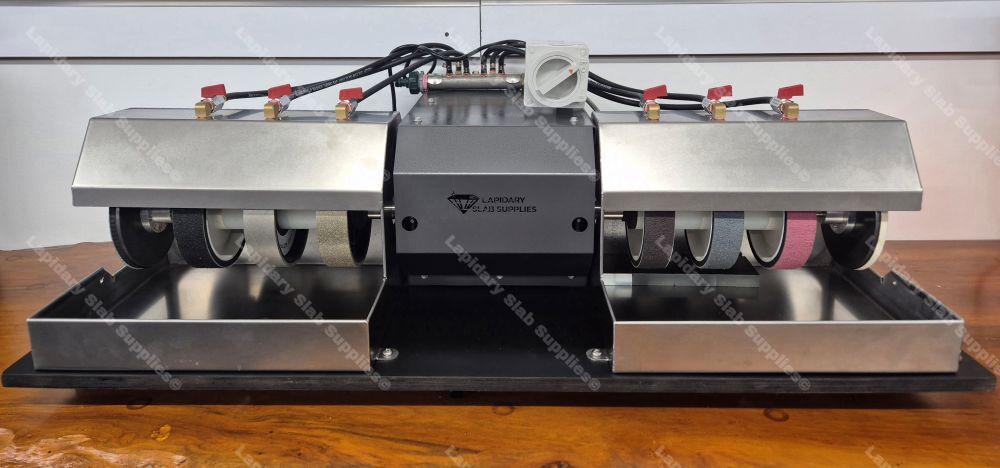

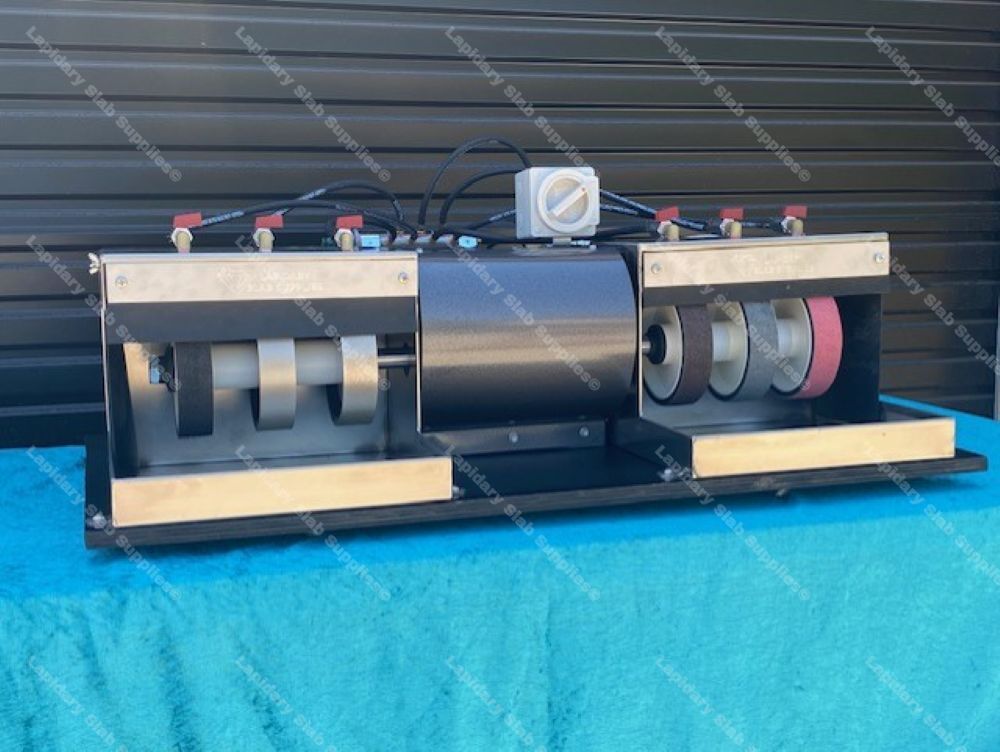

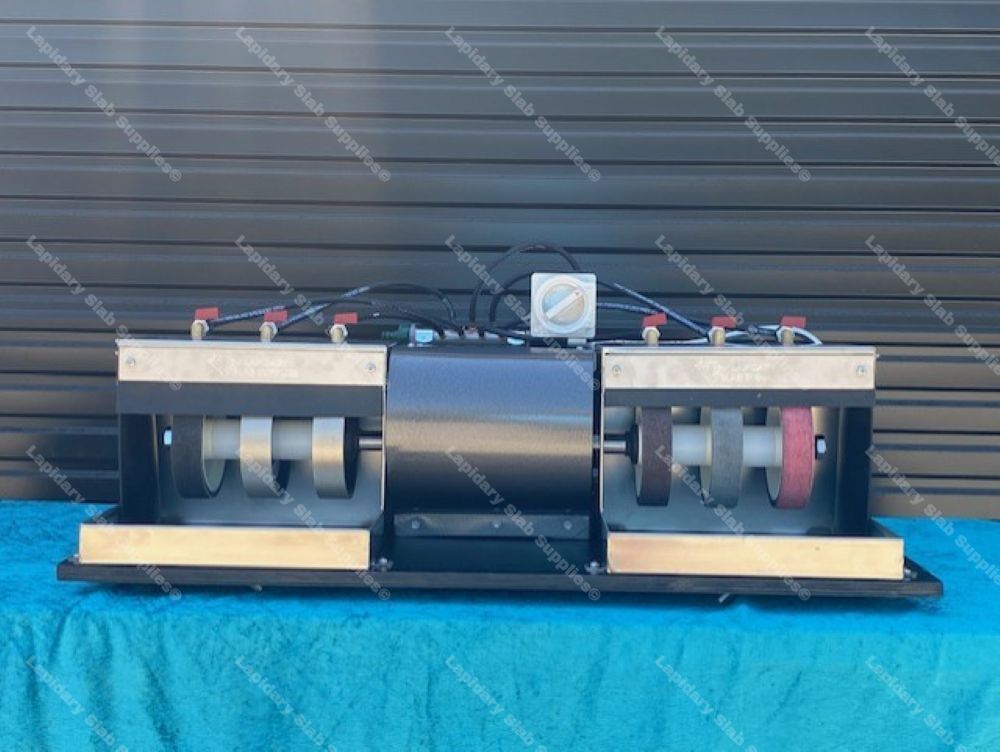

6 Wheel Cabbing Machine

6 Wheel Cabbing Machine

This machine features:

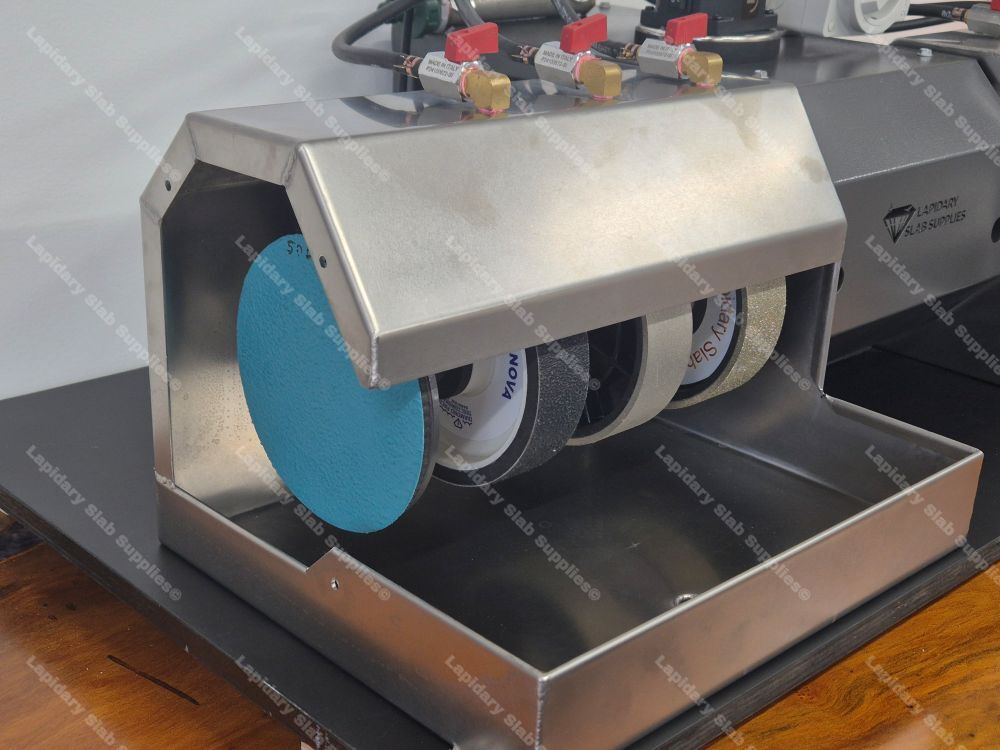

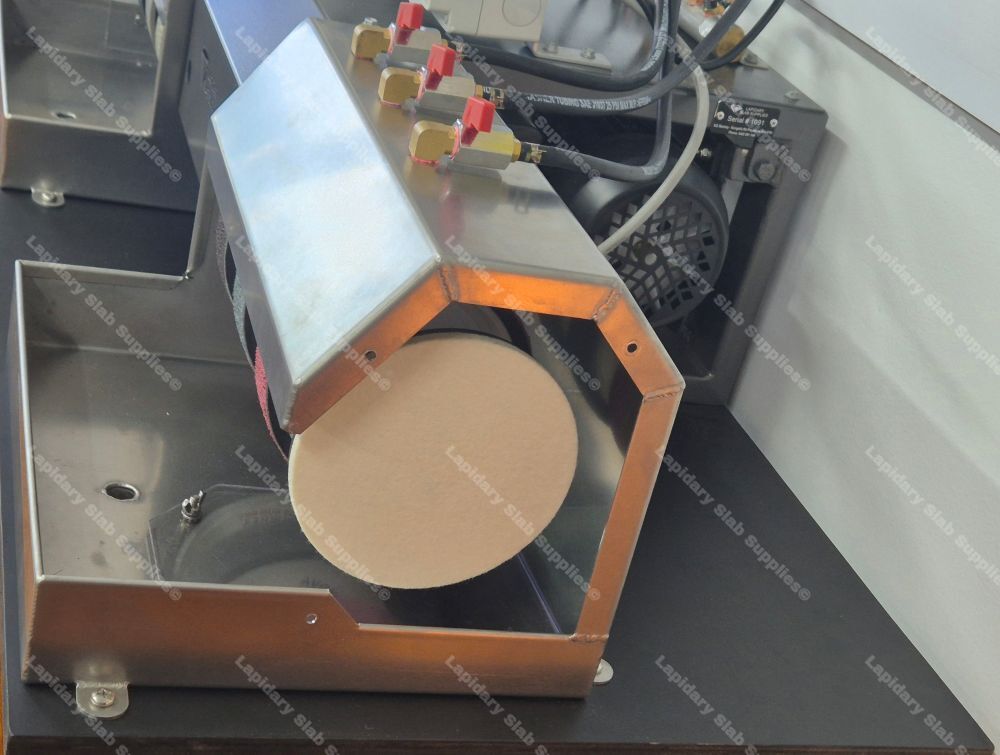

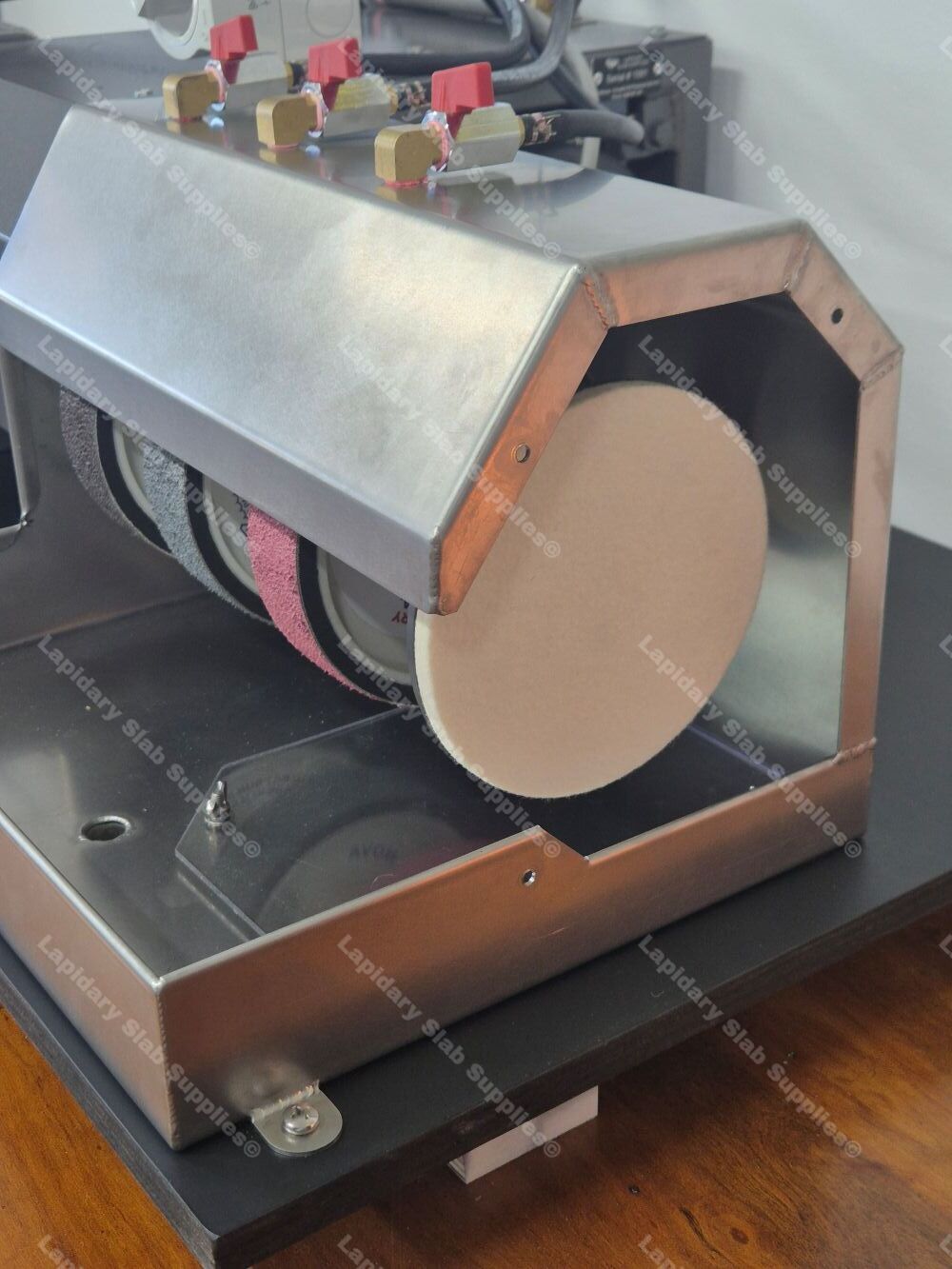

• SS304 shaft which is 25mm diameter in the centre and tapered to 3/4" on the ends for the flange. There is a ¼” thread inside the shaft on the right hand side to take either a 5.5” polish pad or 6" steel base plate which is compatible with our range of 6" magnetic laps and polish pads.

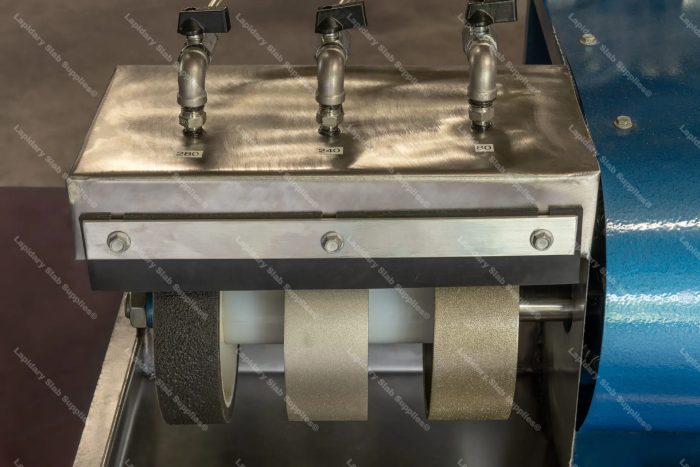

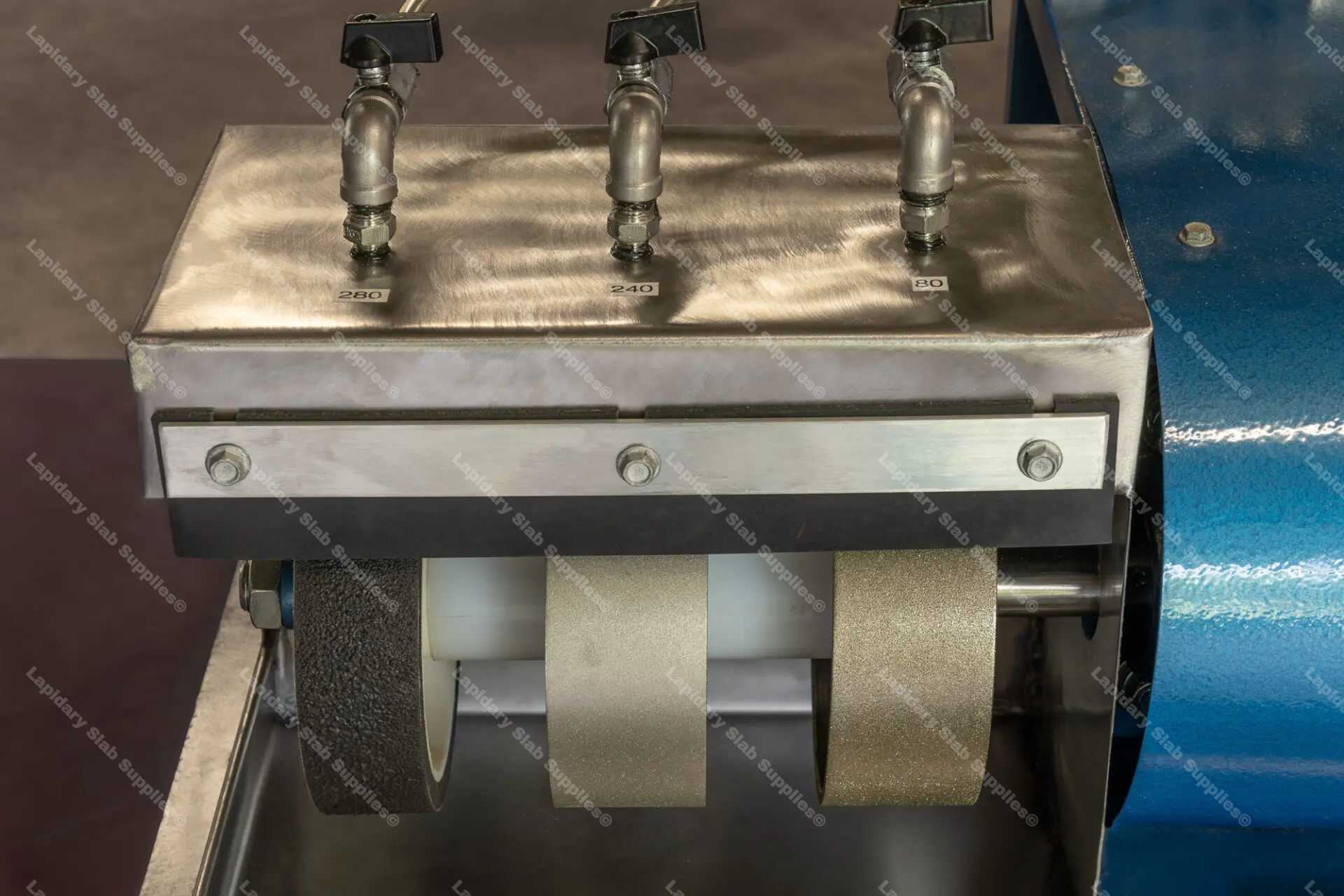

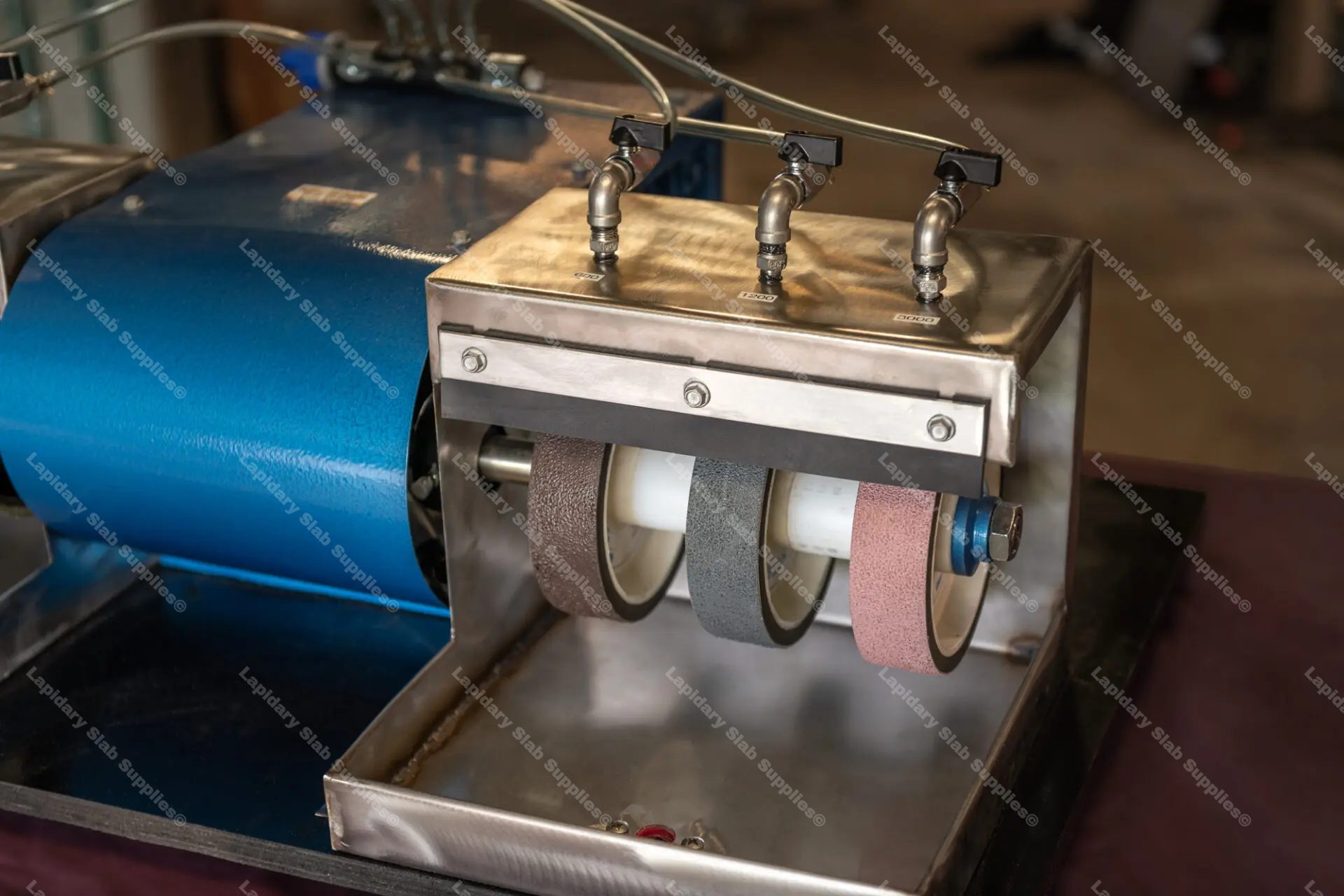

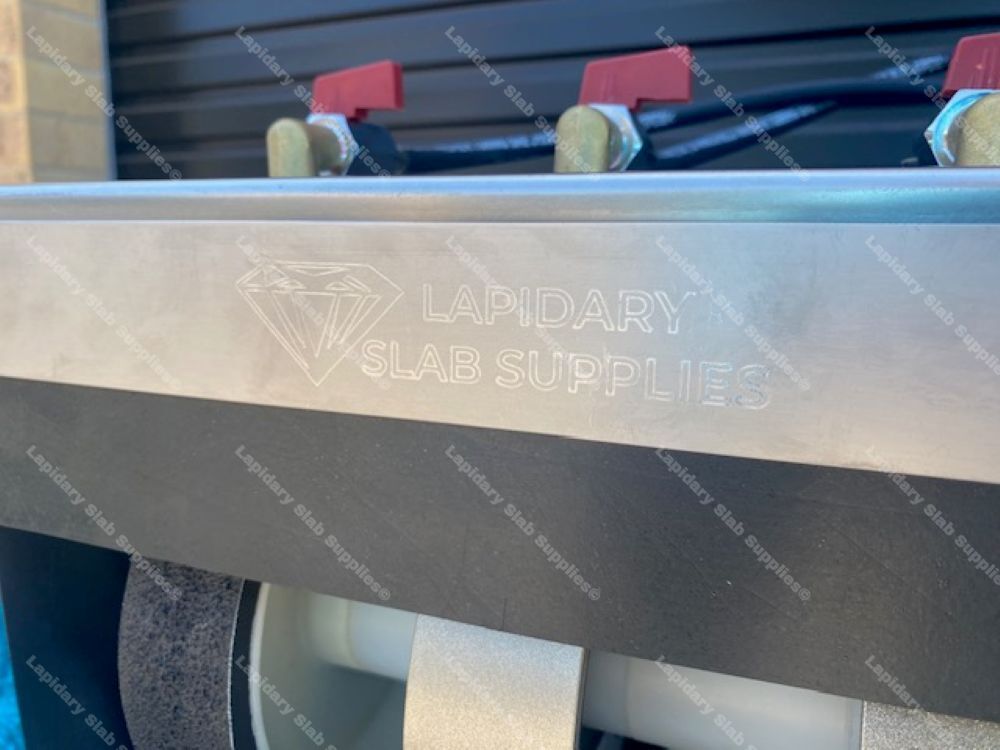

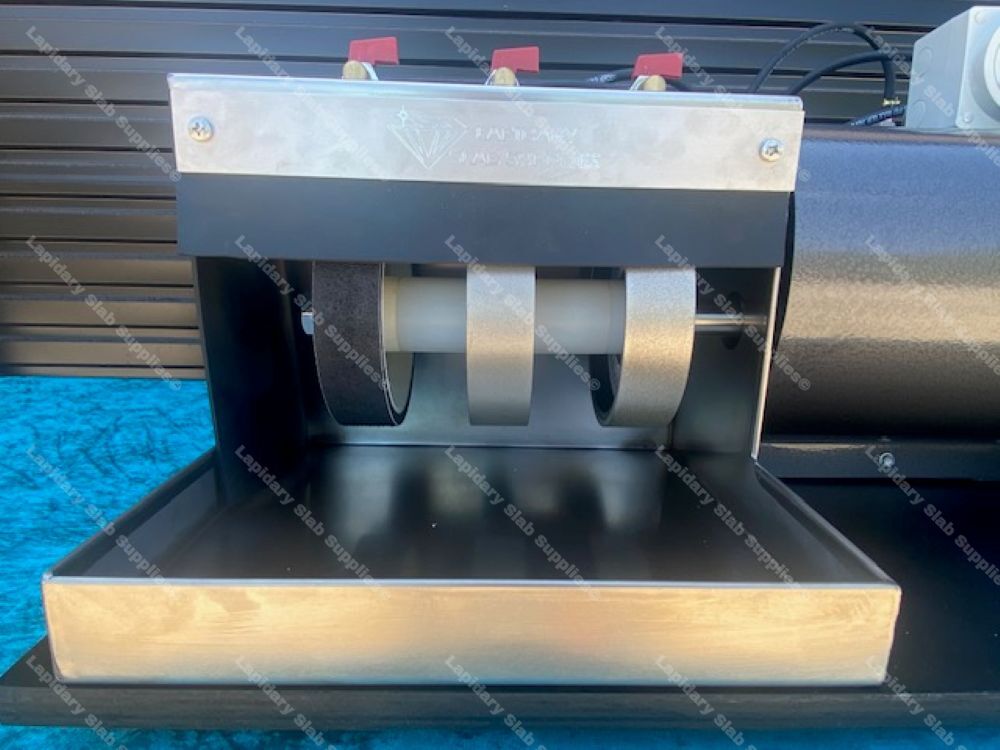

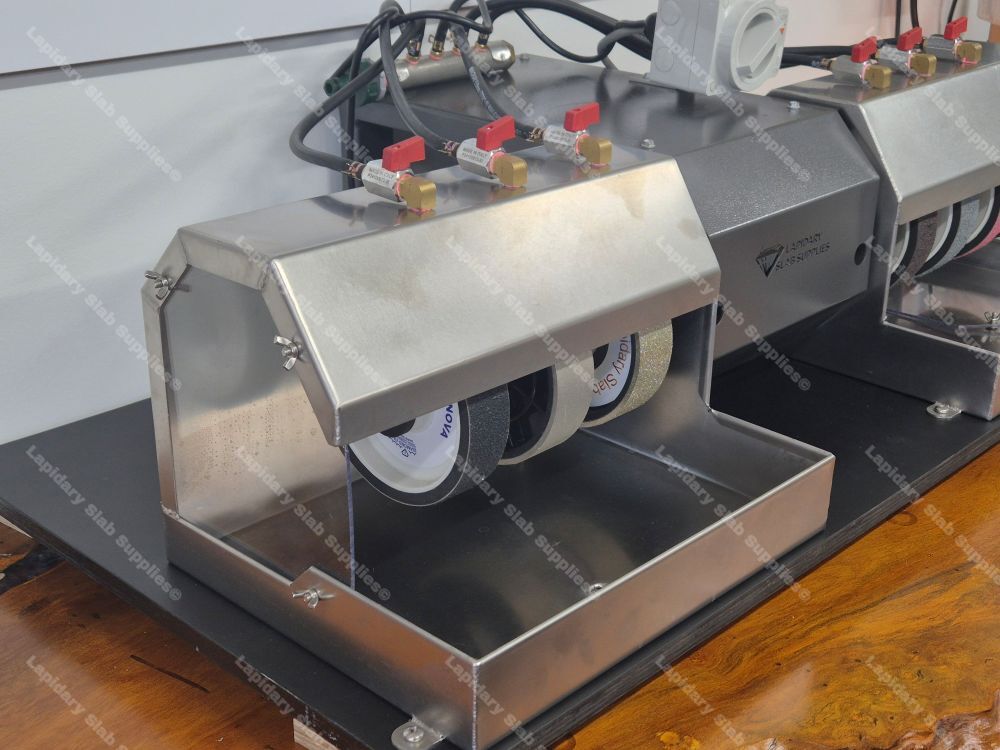

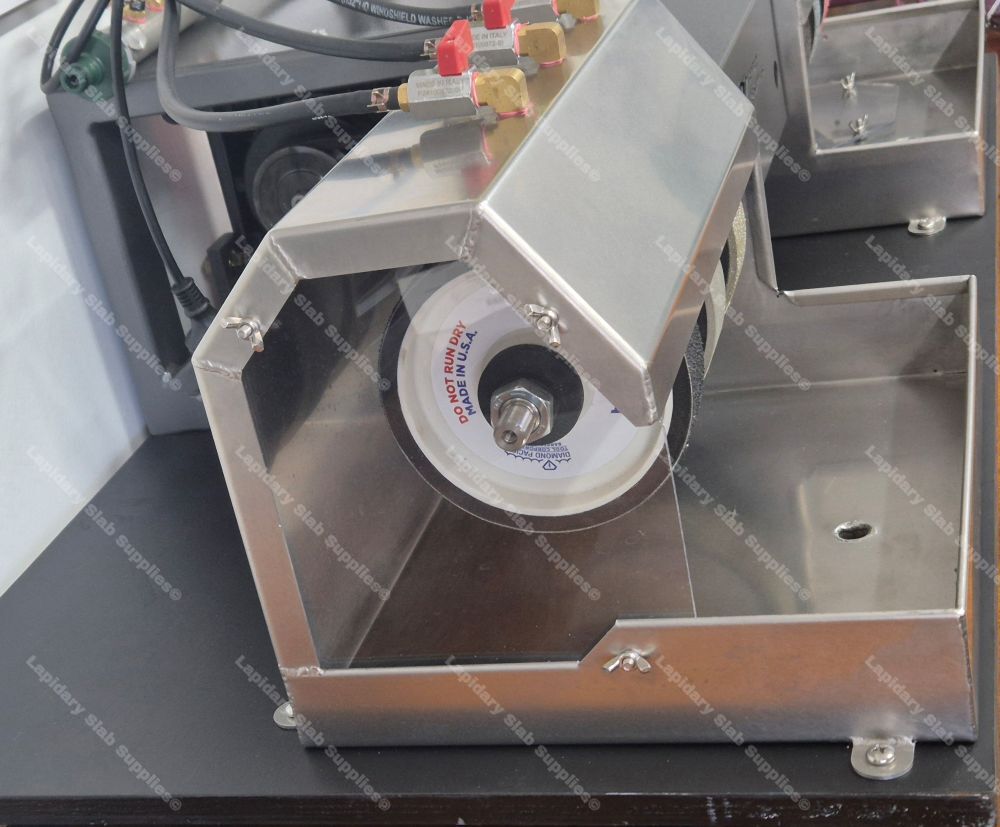

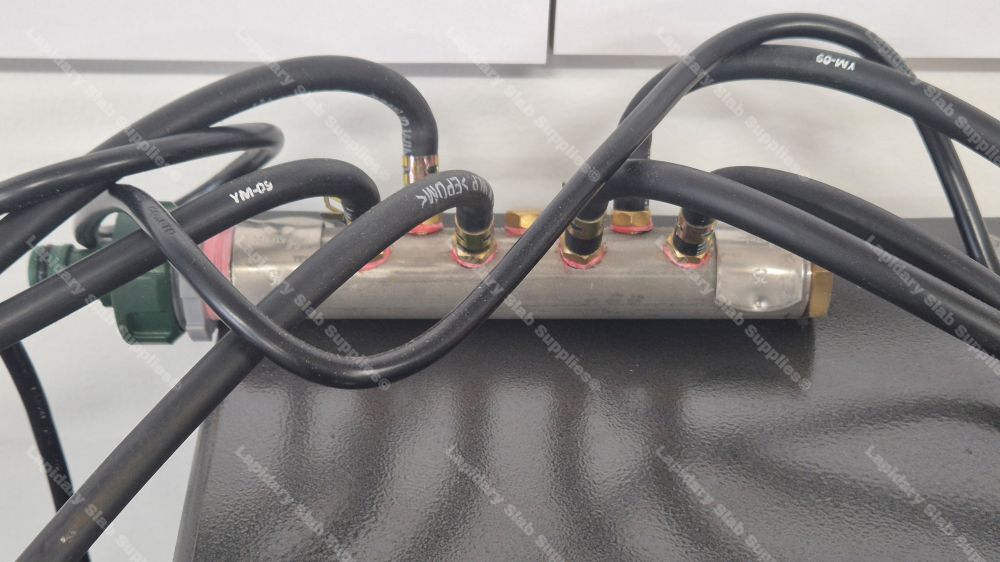

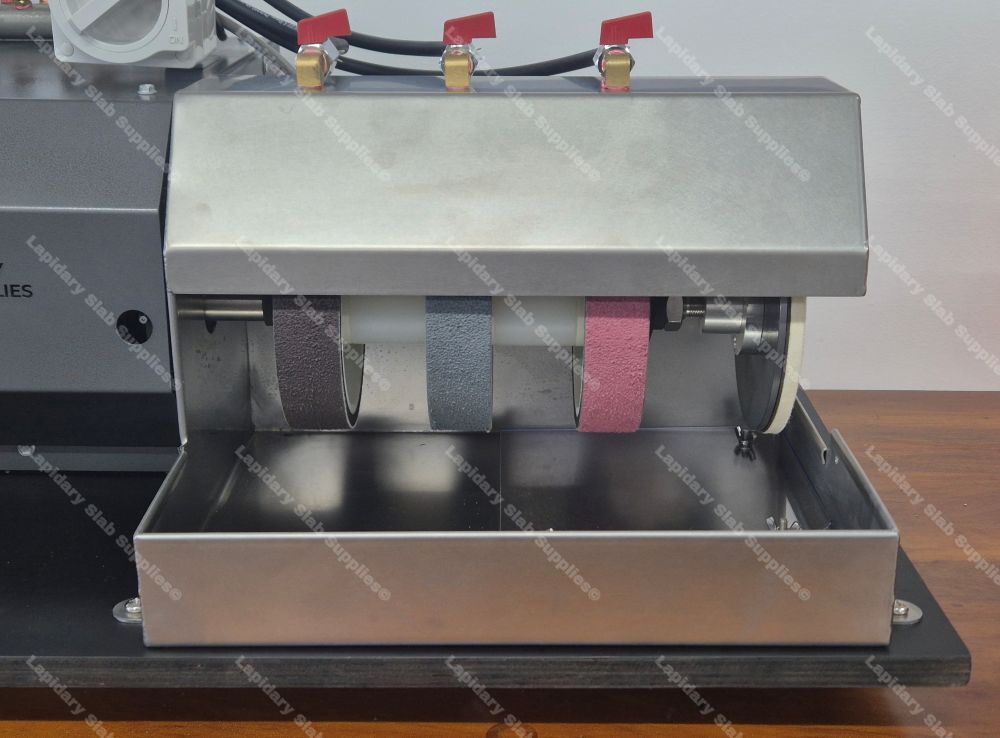

• SS304 wheel boxes (with drainage underneath), SS431 manifold and brass bung for water supply (which comes from a standard garden hose connection), Italian Brass tap fittings, SS316 nuts and solid Australian steel centre frame!
• Superior quality Sealed Bearings and steel bearing housings are fixed to the steel frame for strength and support of shaft + 15mm thick/ 50mm diameter steel flanges.

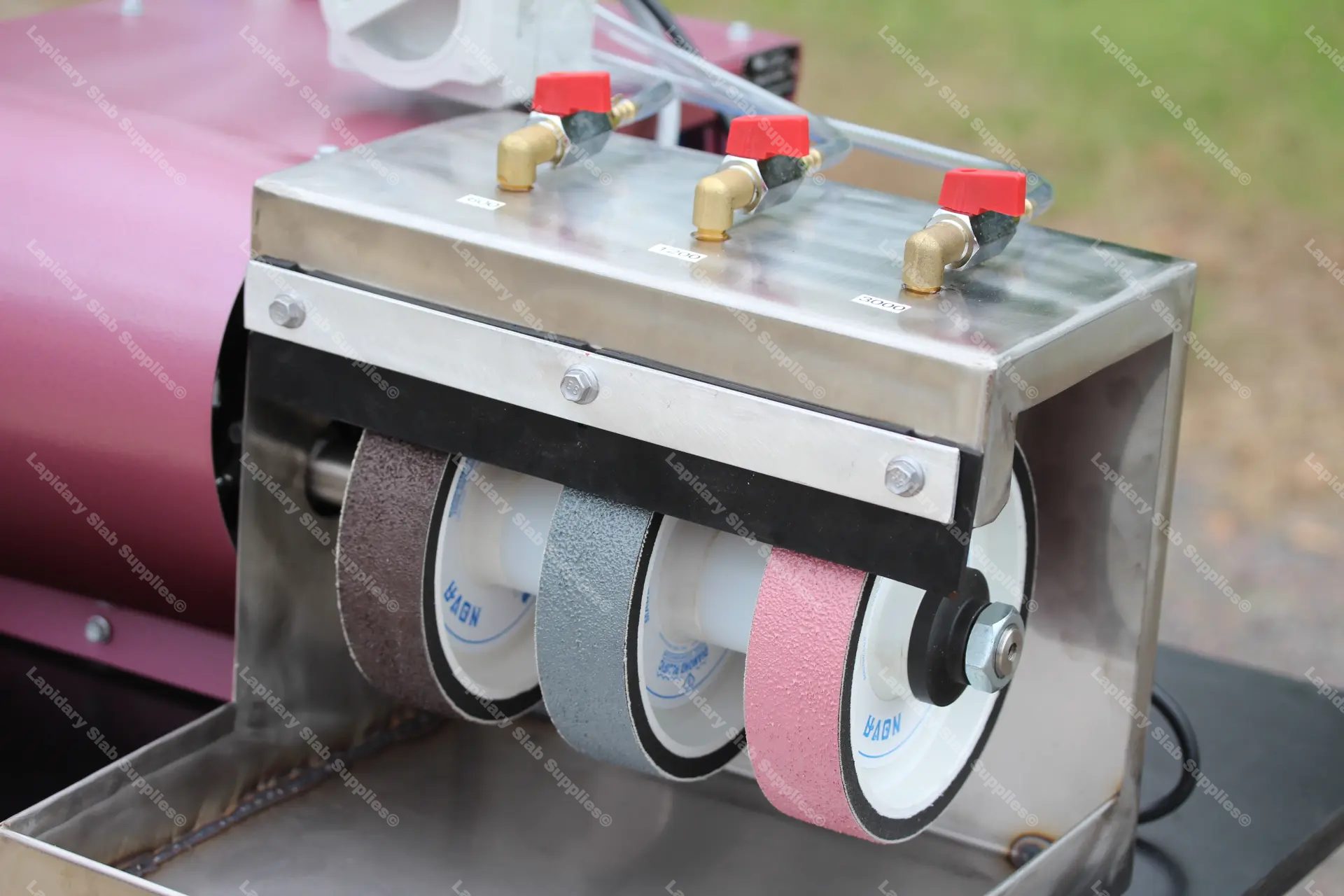

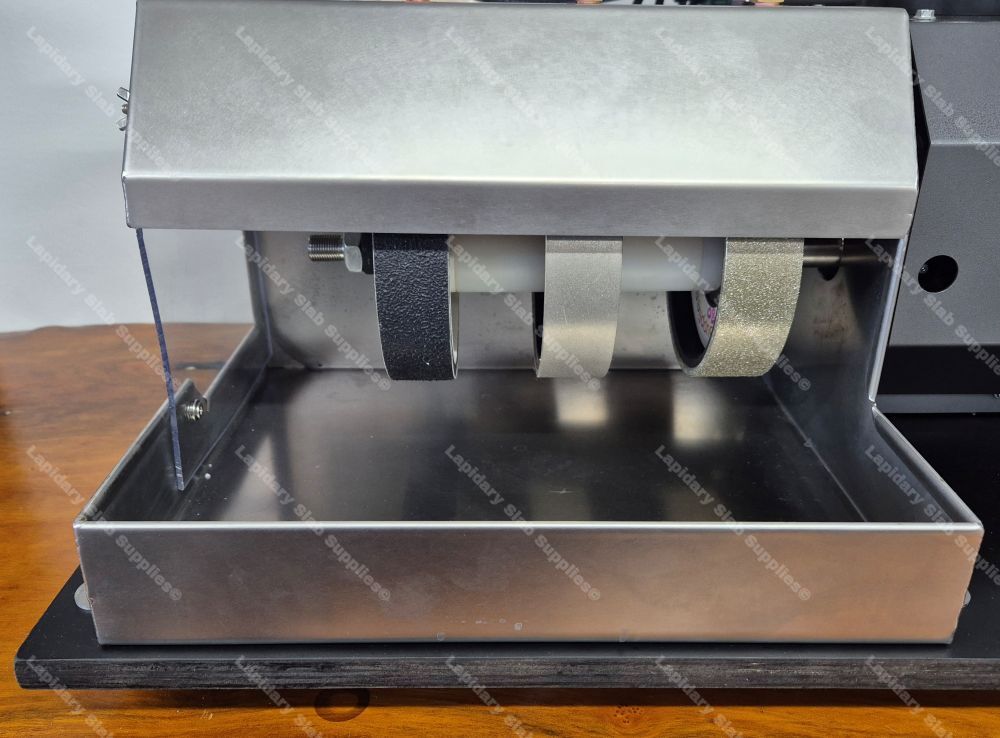

• 50mm diameter Nylon wheel spacers (50mm spacers between each wheel – plenty of room for hands when cabbing) + spacers support the full surface of the wheel hub without rubbing the plastic centre wheel hub down.

What is it mounted on?

• Our 6 wheel cabbing machine is mounted on a sealed 12mm ply base board.
• Rubber feet on the bottom of the base board for easy bench or table mount.

Is there a on/off switch on the machine?

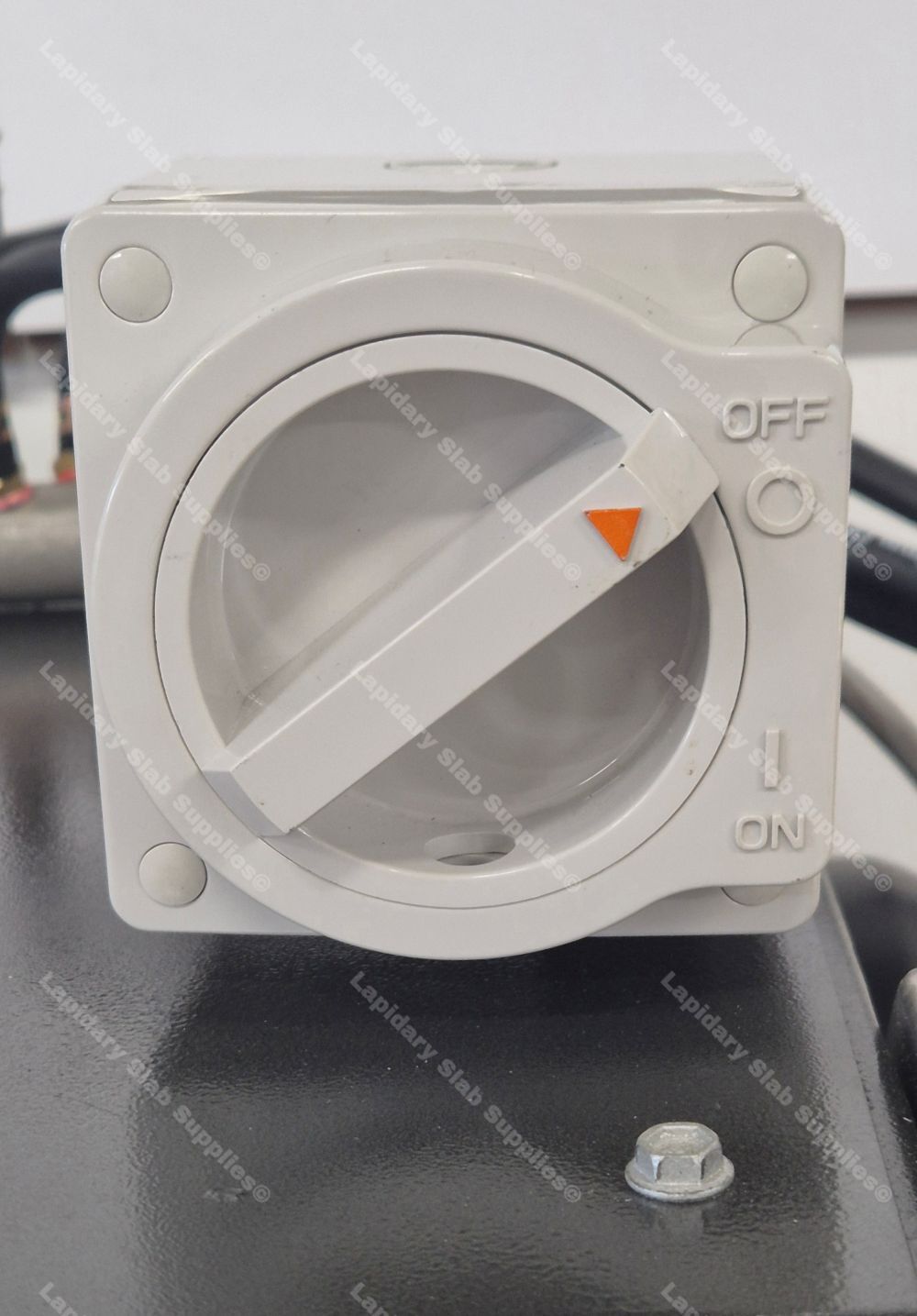

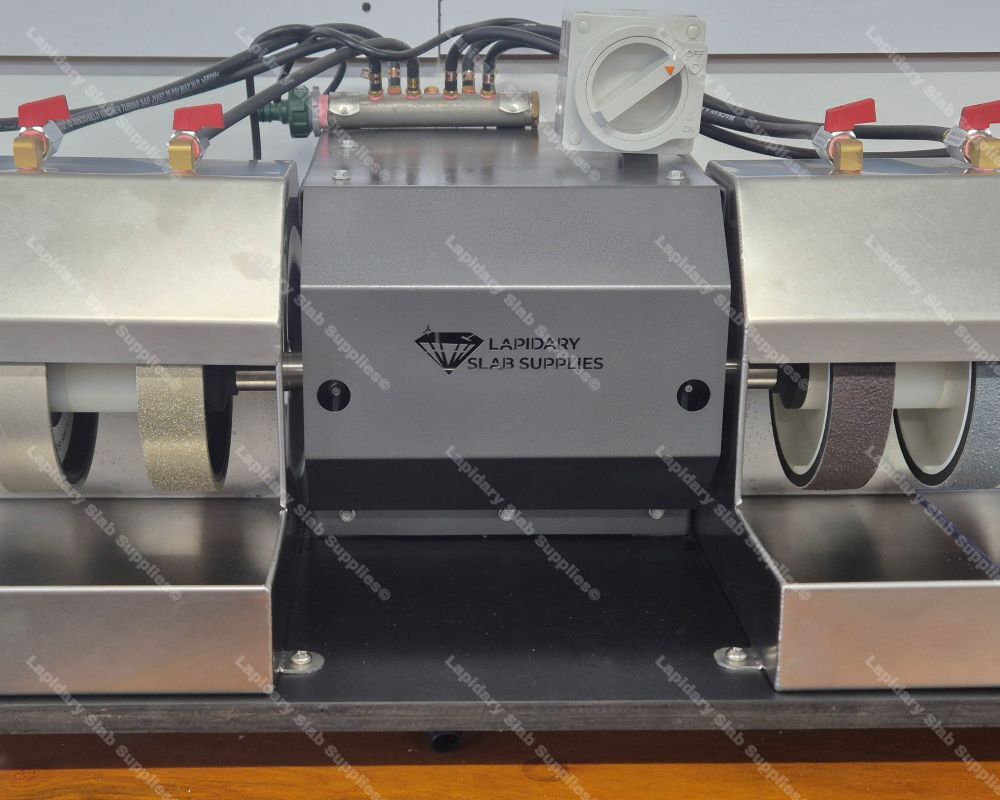

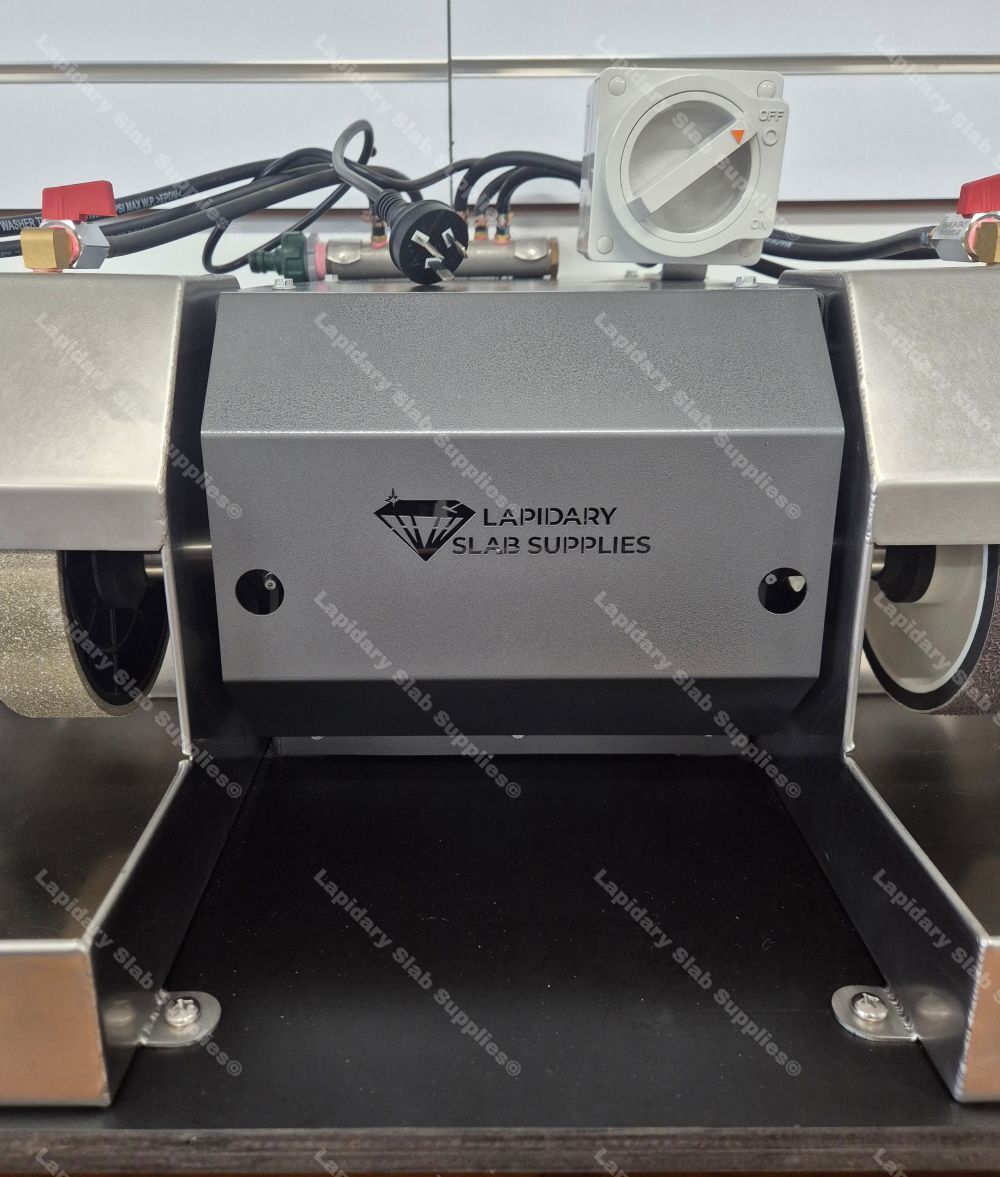

• Yes, there is a switch to turn machine on and off. It's not just wall power switch.

Machine weight and dimensions:

• 6 inch - 50kgs, 930mm wide, 570mm deep and 490mm high
• 8 inch - 56kgs, 930mm wide, 570mm deep and 550mm high

Available in either:

• 6"
• 8"

Available in either:

• 6 inch $2660.00 (Includes 2 hard wheels and 4 Supa Nova soft wheels)
• 6 inch $3300.00 (Includes 2 hard wheels and 4 Diamond Pacific Nova soft wheels)
• 8 inch $4300.00 (Includes 2 hard wheels and 4 Diamond Pacific Nova soft wheels)

How big is the motor on the 6 wheel cabbing machine?

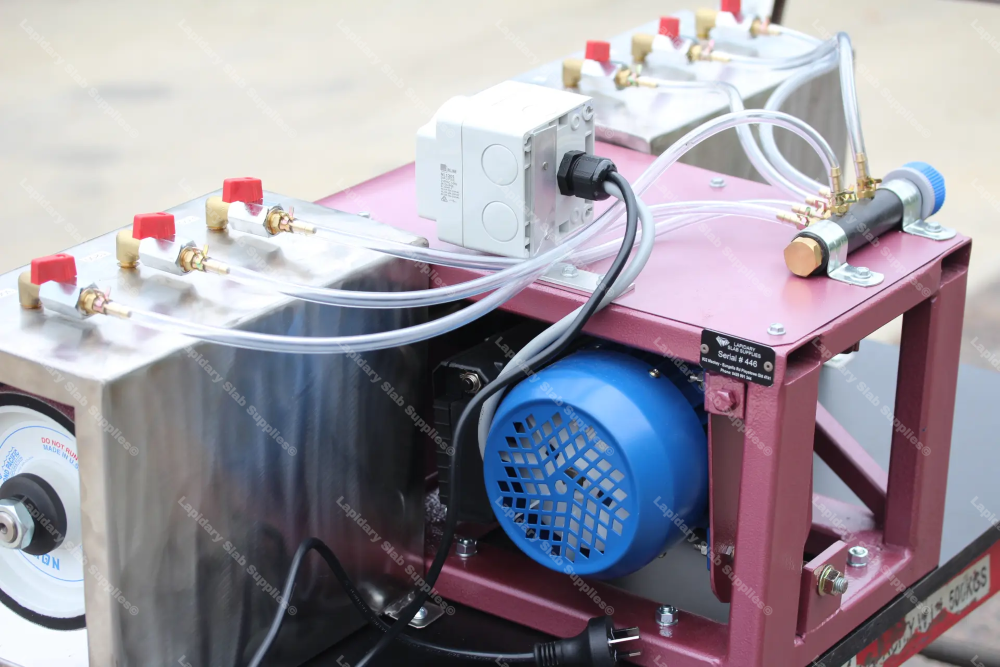

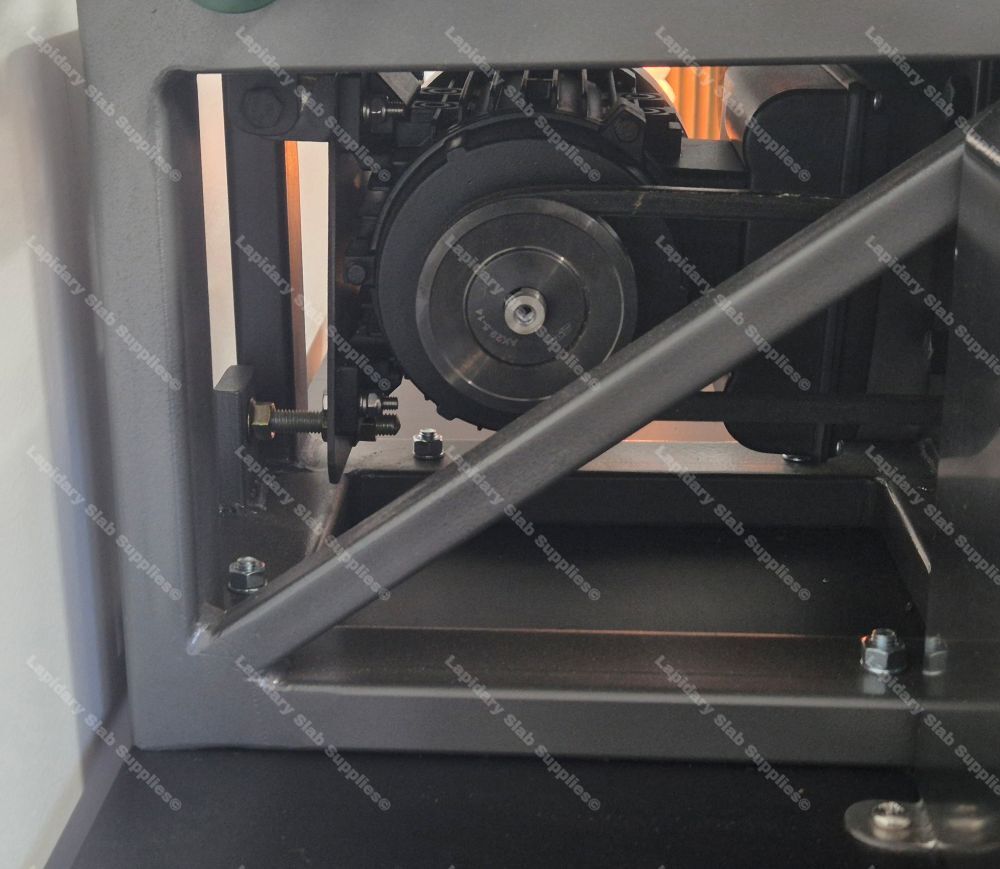

• The size of the motor is 1/2 HP single phase motor (with overload switch) which is set to run at 1400rpm.
• Gates motor belt which is fully adjustable.

Where are the 6 wheel cabbing machines made?

• All of our machinery is hand crafted in Queensland, Australia.

Does this machine come with a warranty?

• Yes, we offer a 12 month warranty on all of our hand-crafted lapidary machines.

What comes with the 6 wheel cabbing machine when purchased?

• Our 6 wheel cabbing machine comes with 2 hard wheels and four soft wheels.

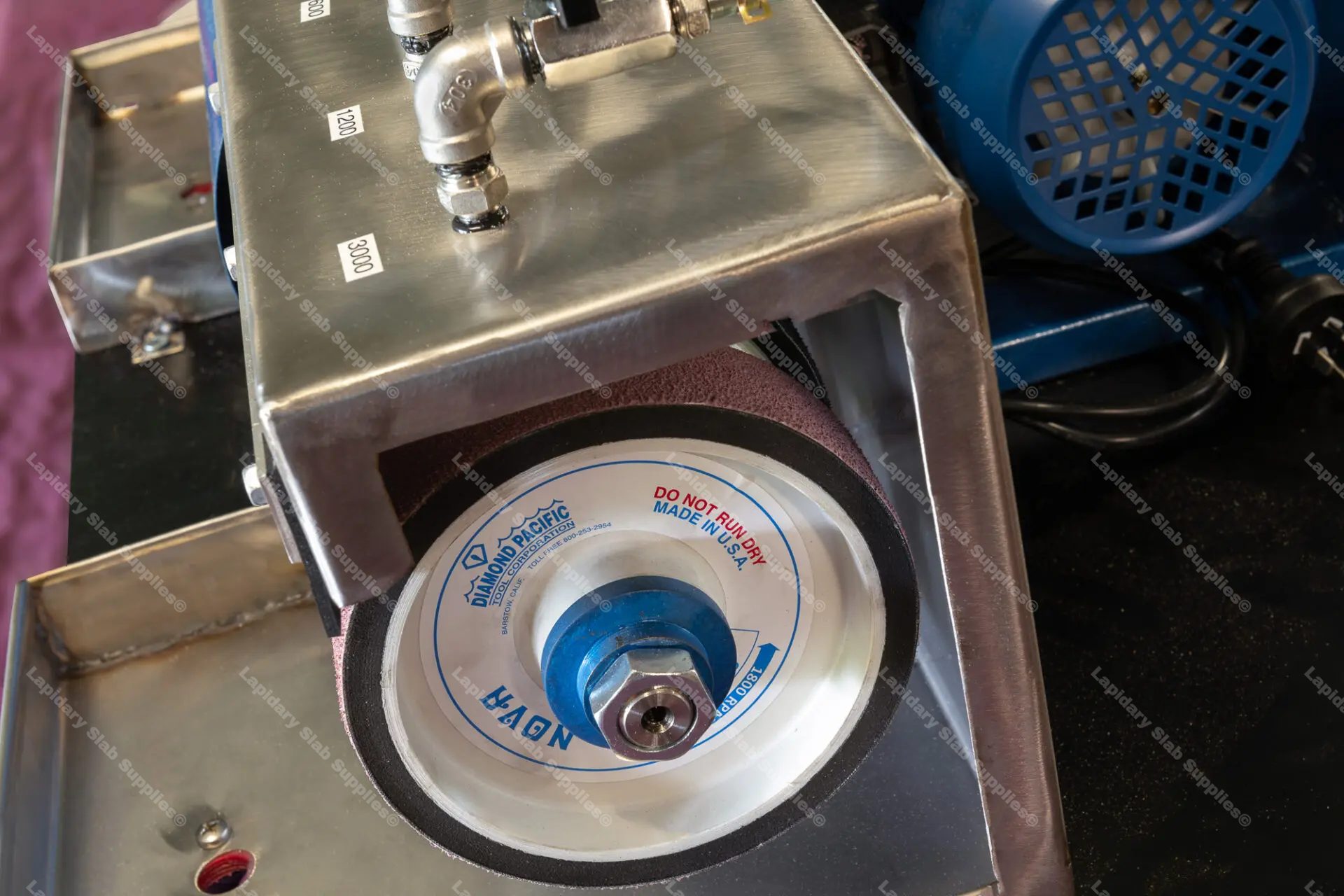

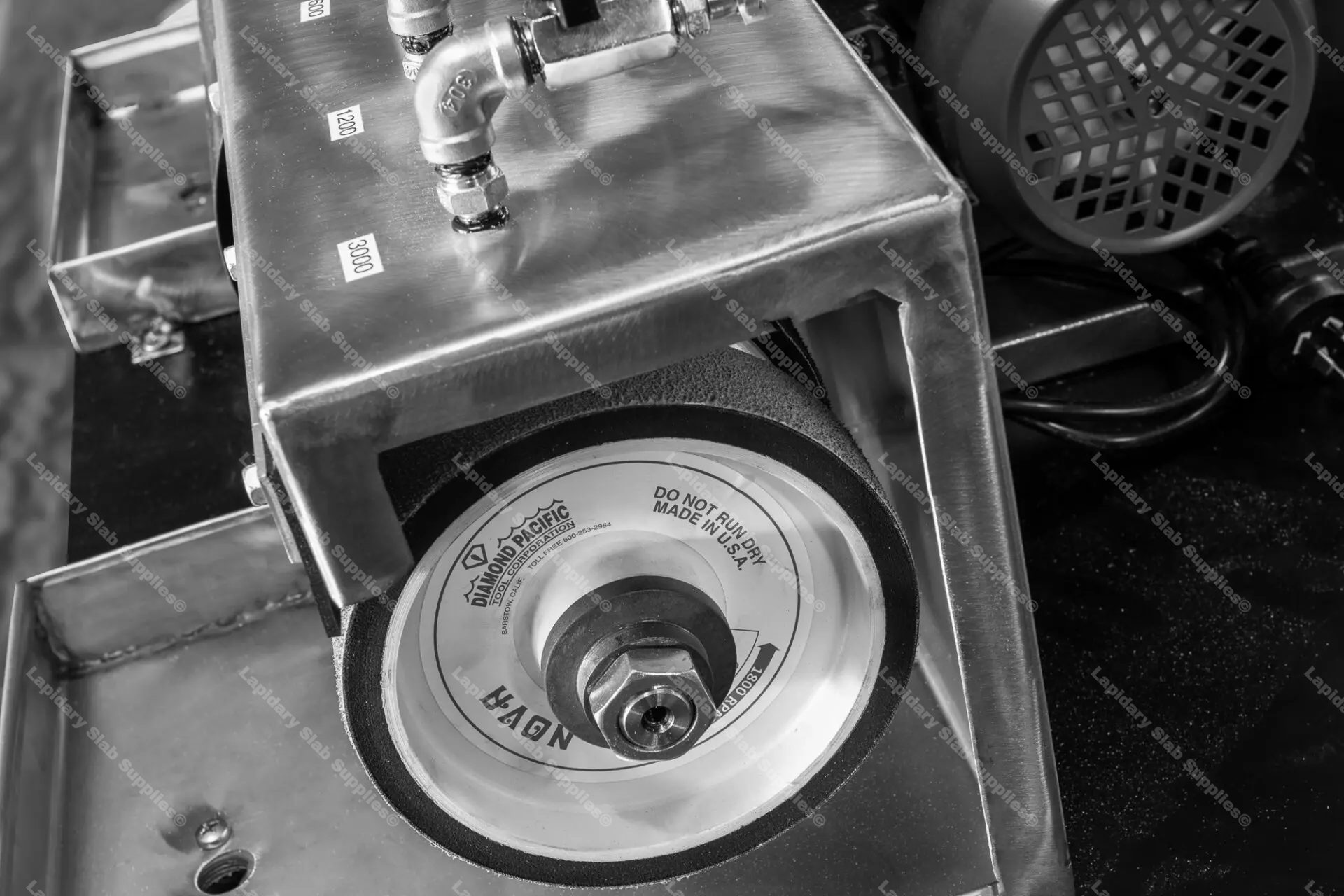

• You can choose which brand of soft wheels, depending on your budget. For people polishing Opal, we recommend the Diamond Pacific brand made in USA. You may select whichever grit hard and soft wheels you like with your order, please leave us a note for your preference.

Please note:

• All our machines are quality tested before shipping.
• If you are residing in New Zealand and interested in one of our machines, please contact us by phone or email for a freight quote.
• Adult supervision is required for small children when using the 6 wheel cabbing machine.
• Please use appropriate safety gear when using the 6 wheel cabbing machine.

*Please note that all machines are built to order and therefore there is a wait time on completion. If you would like to know the exact time frame on your machine - please contact us via phone or email prior to placing your order to avoid disappointment. It is very rare for us to have a machine in stock, however we do have some from time to time.*
