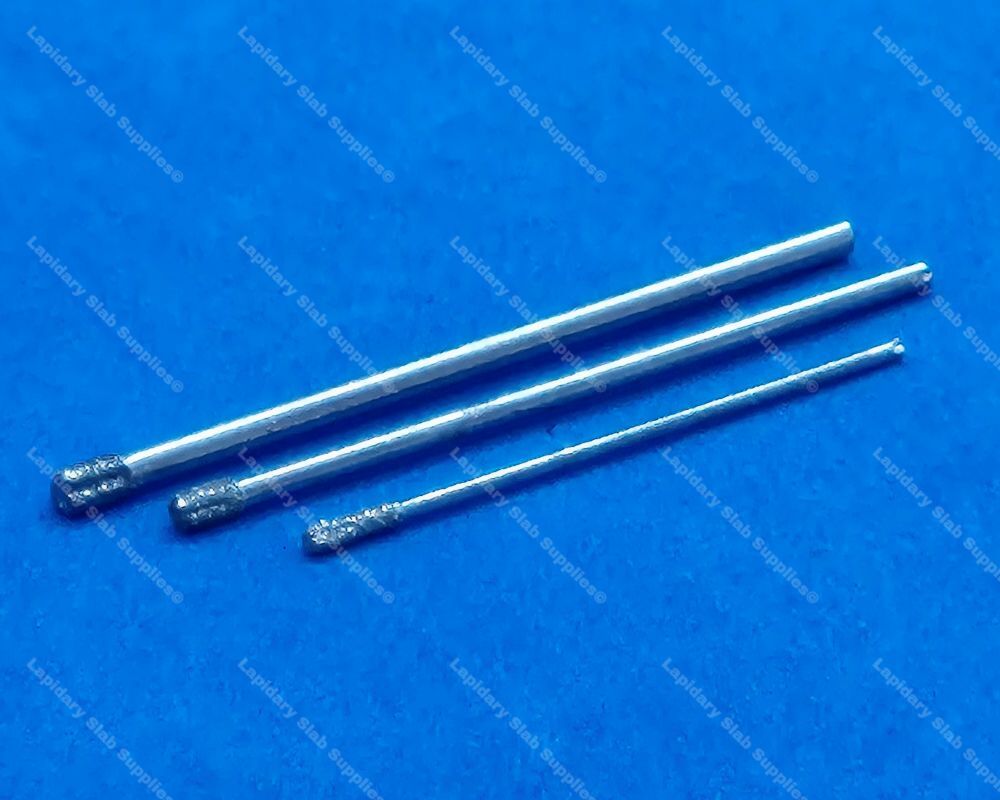

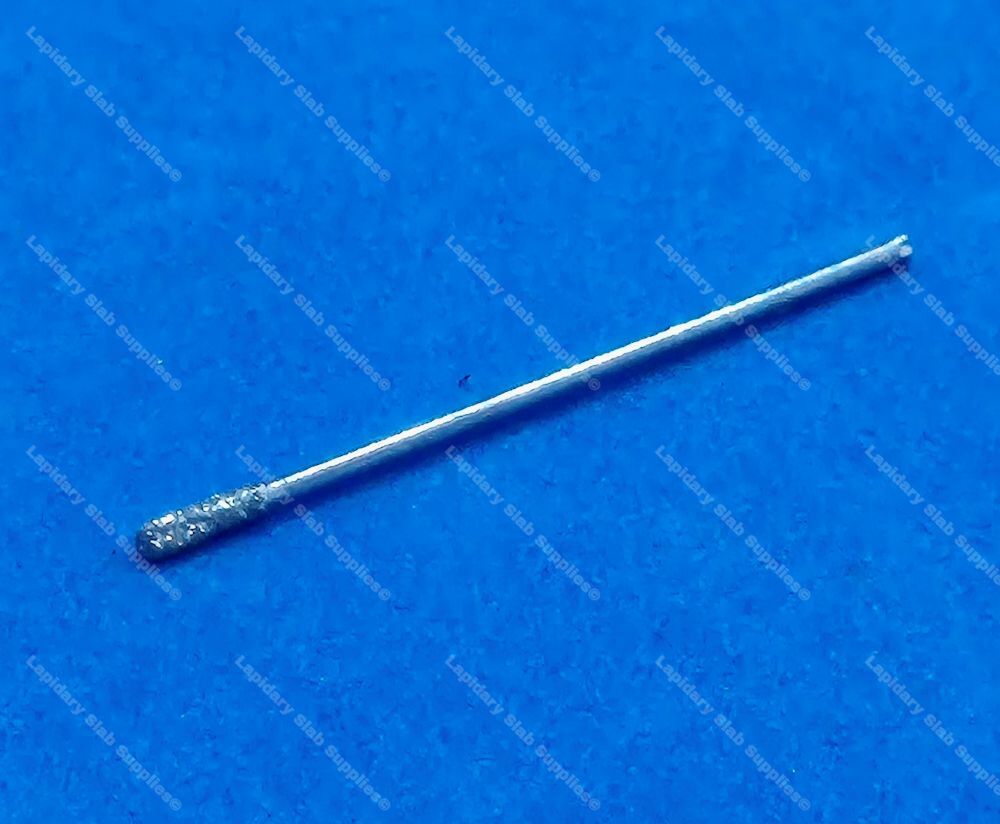

Crystalite Triple Ripple Drills

Crystalite Triple Ripple Drills

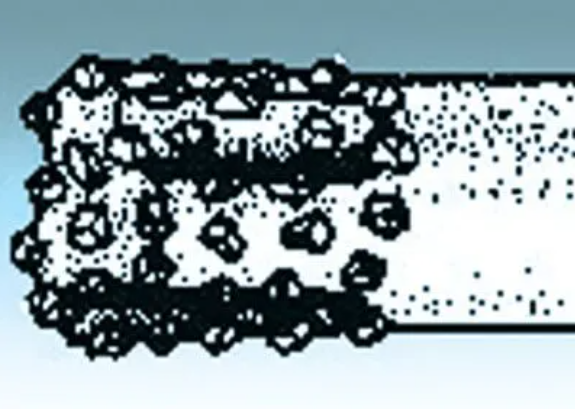

• This music wire diamond drill has three flutes to allow cuttings to flush away and decreases frontal contact and drag.

How Do I use the crystalite triple ripple drills?

• Start hole by allowing only a minimum amount of drill tip to protrude beyond the collet or chuck jaws since shank size is only .020.
• Once the hole is started, adjust drill length as necessary.
• Submerge in water or use constant flow.
• Use rapid up-and-down motion when drilling. Light to moderate pressure.

What is the recommended RPM?

• Run at 10,000 RPM minimum or more.

What sizes are available?

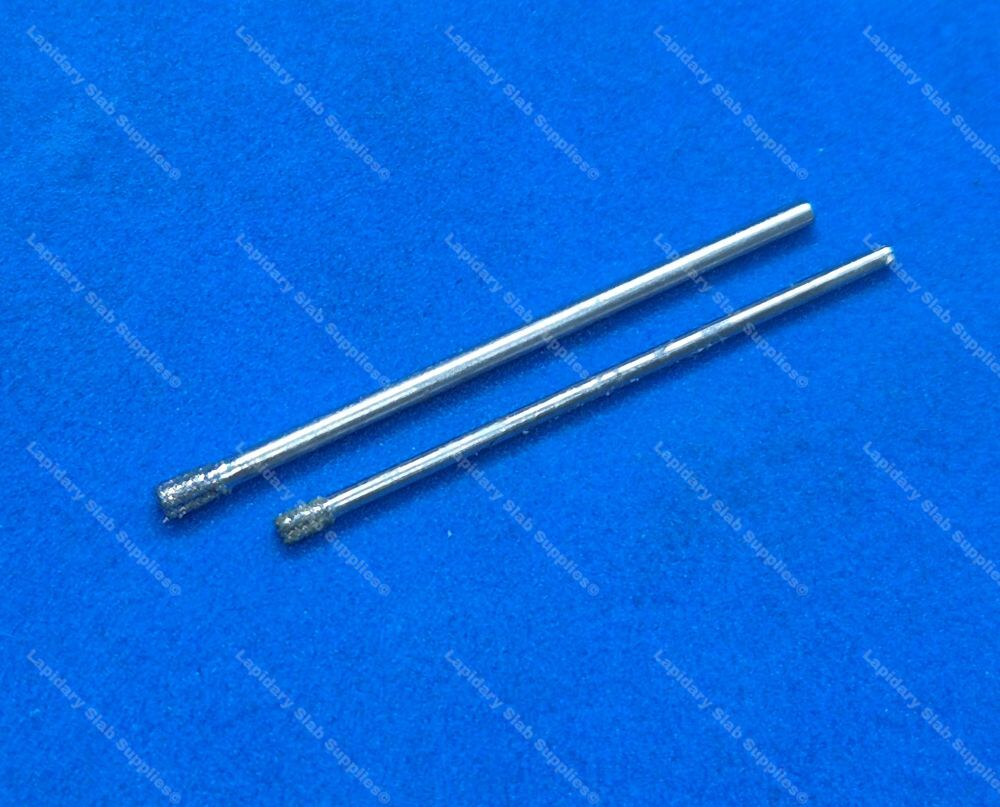

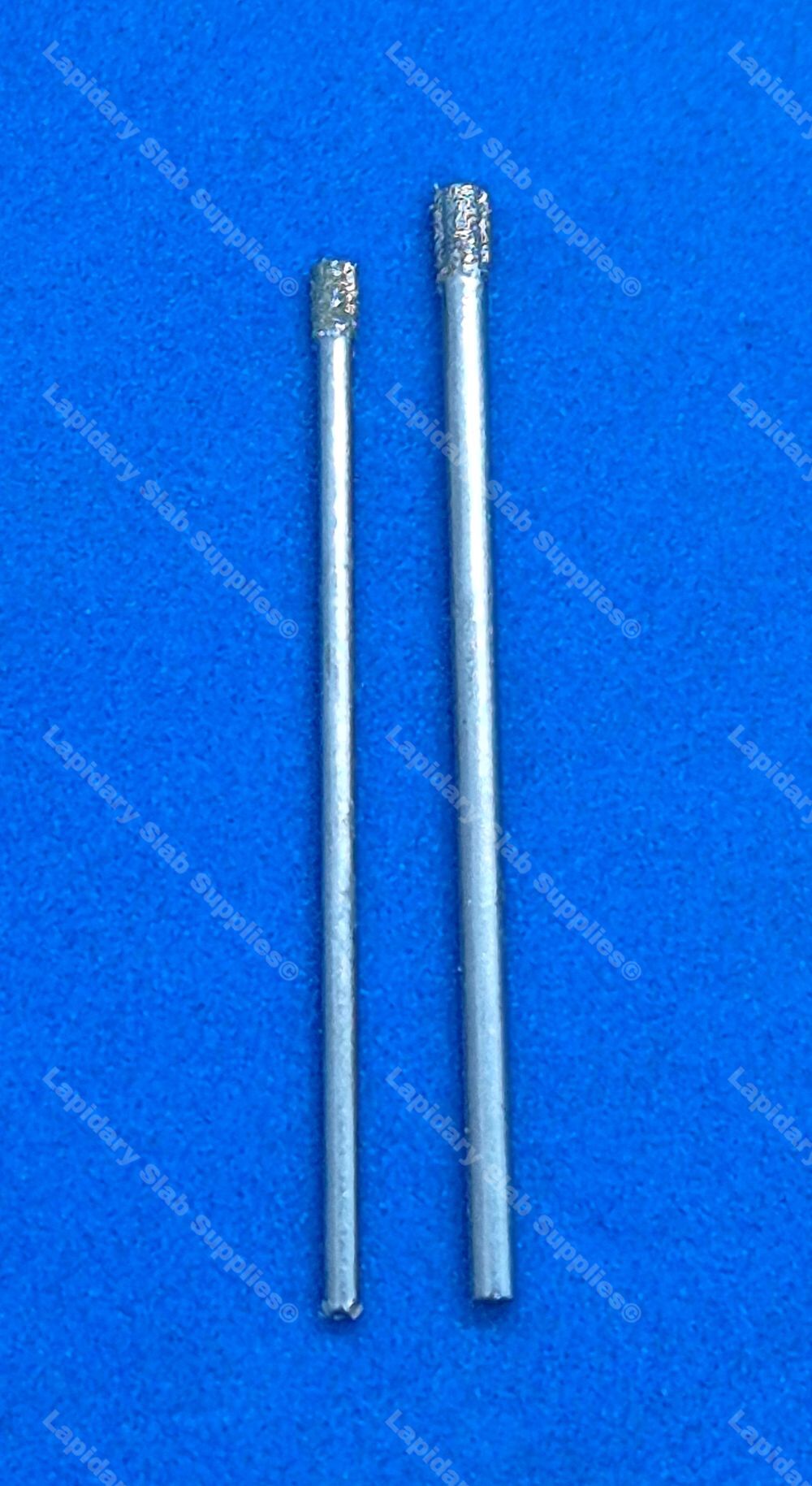

• We currently have two different sizes available for the crystalite triple ripple. Please see below.

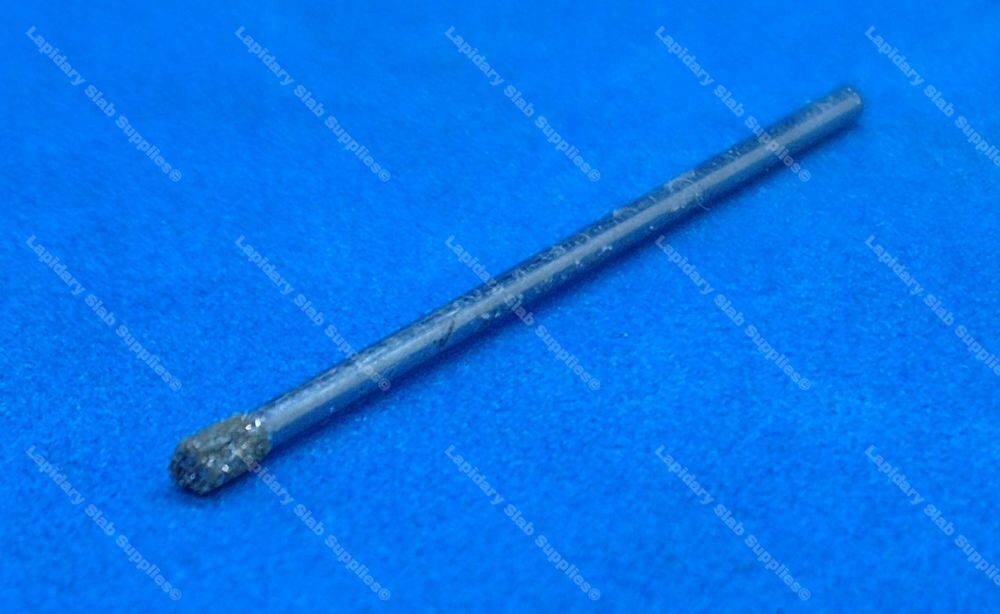

• 1.8mm
• 2.1mm

IMPORTANT:

• Always recognize that the drill tip must always have coolant. A combination of excessive speed, pressure, dwell without lifting the drill will deprive the drill of water and the tip may overheat, destroying the drill.
• They are not designed to fit a 2.35 collet (tools such as a dremel). It will require an adjustable check to hold the drill bit. Micro Motors and quick release hand piece will also not hold them.

Please note:

• Please keep out of reach of small children.
• Please use appropriate safety gear when using the crystalite triple ripple drills.
