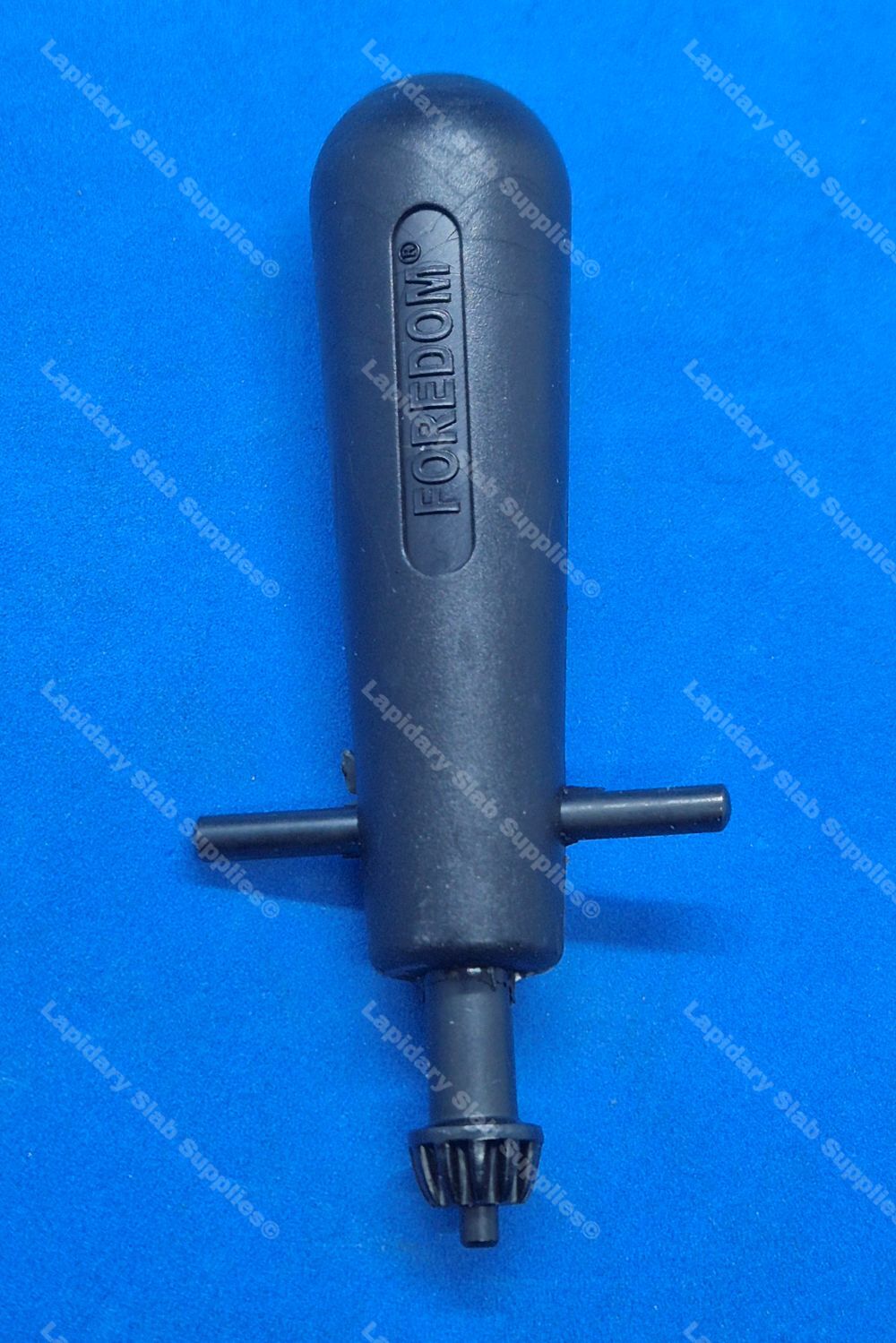

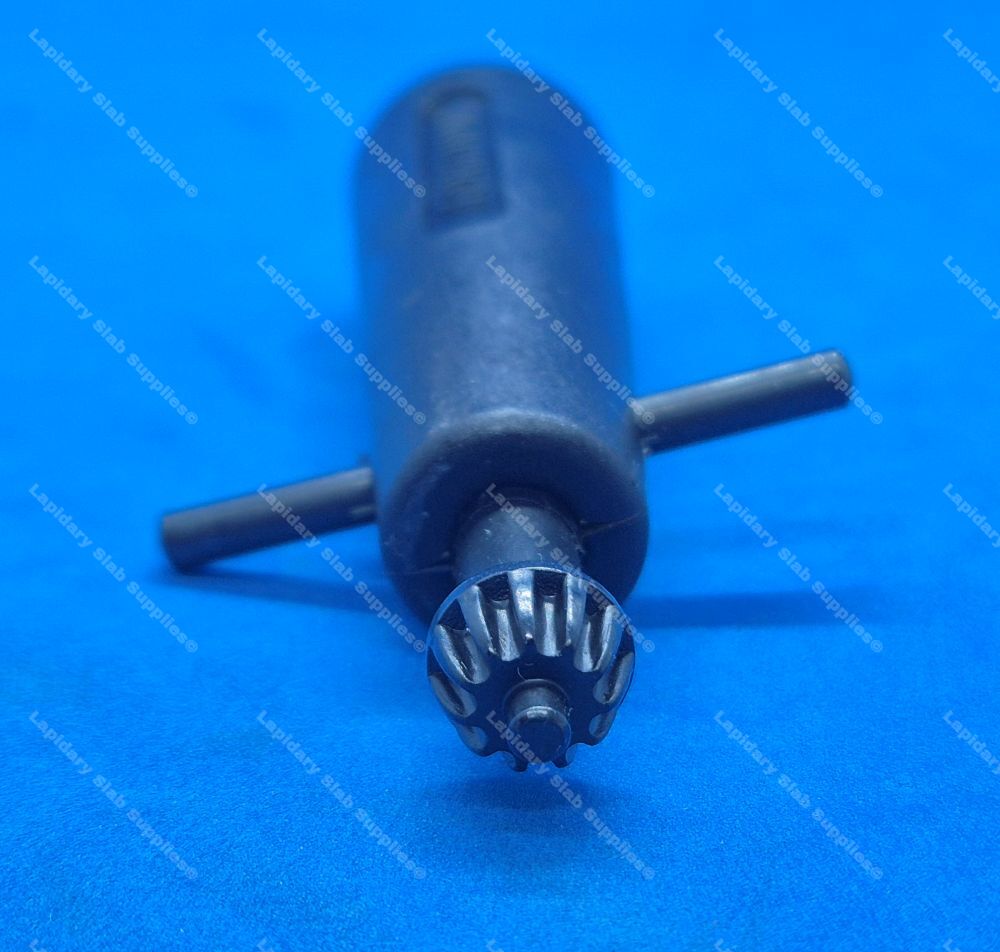

FOREDOM Chuck Key

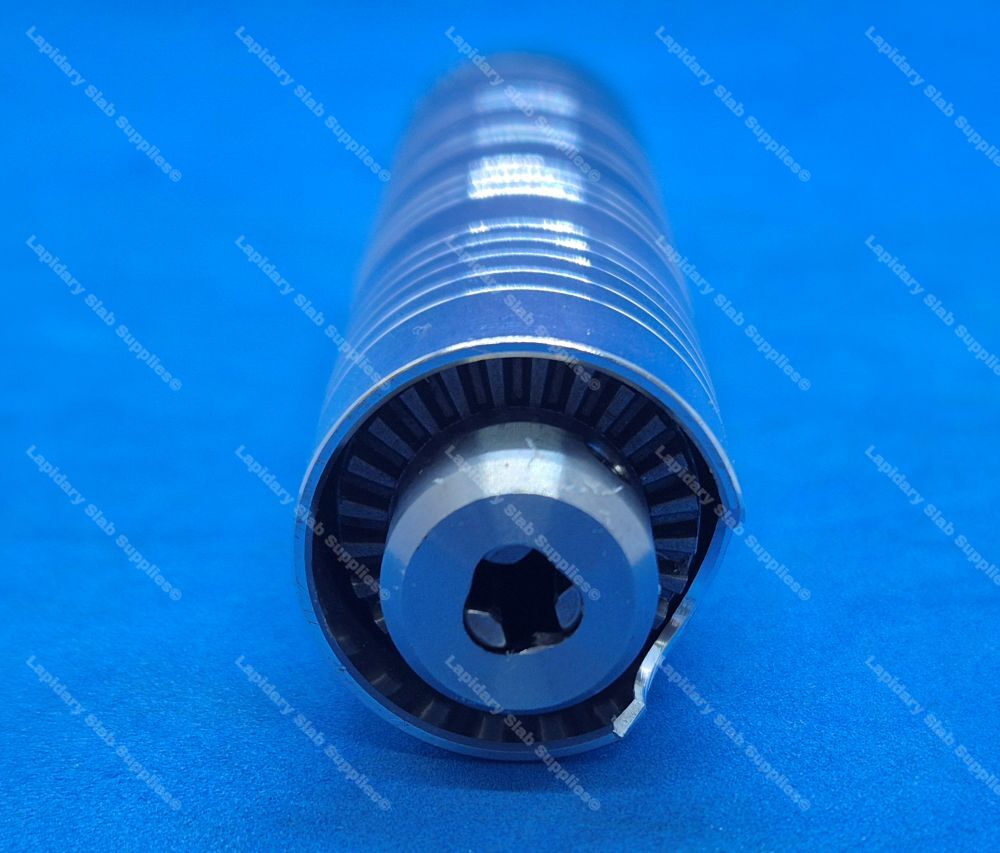

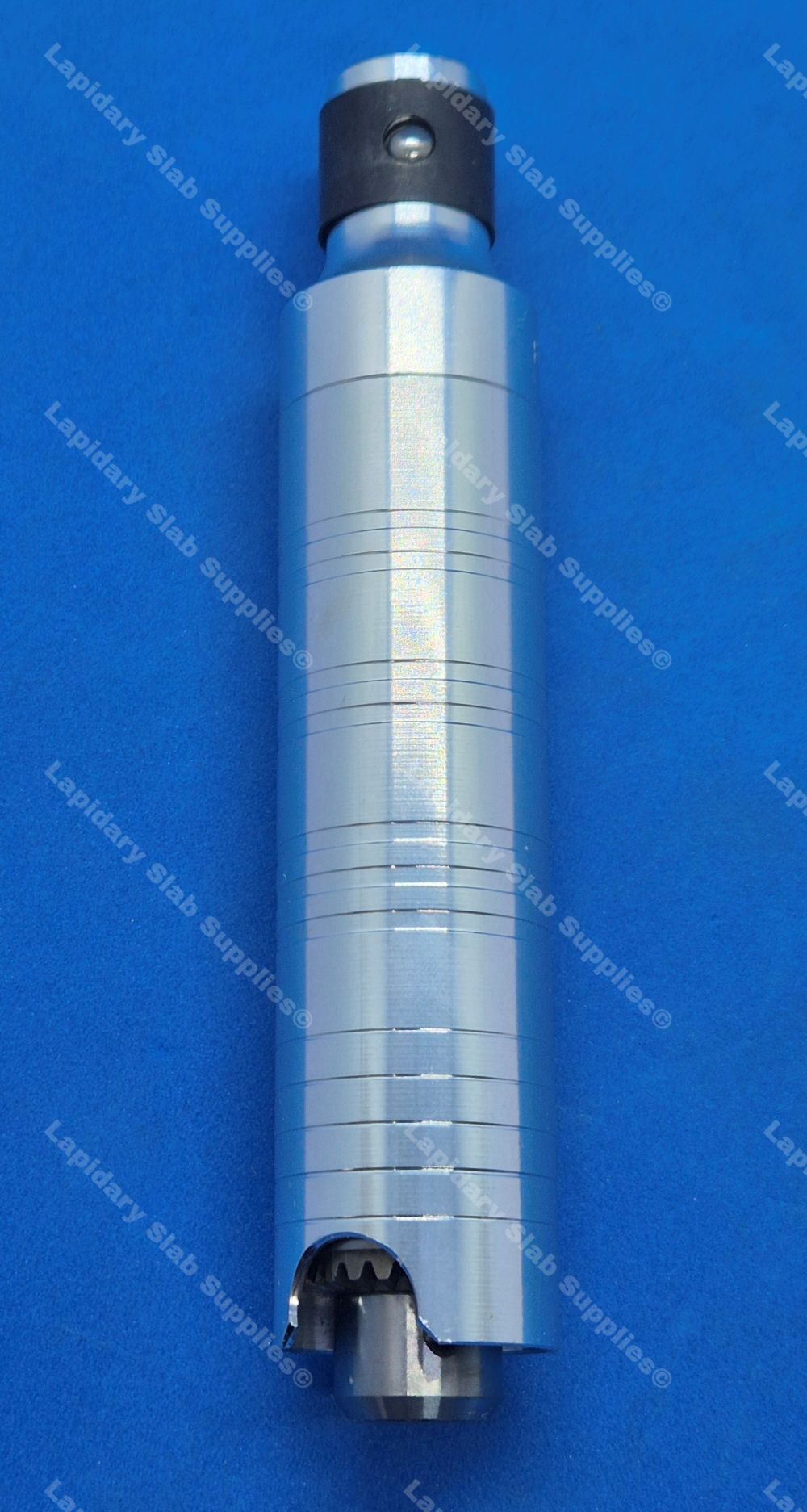

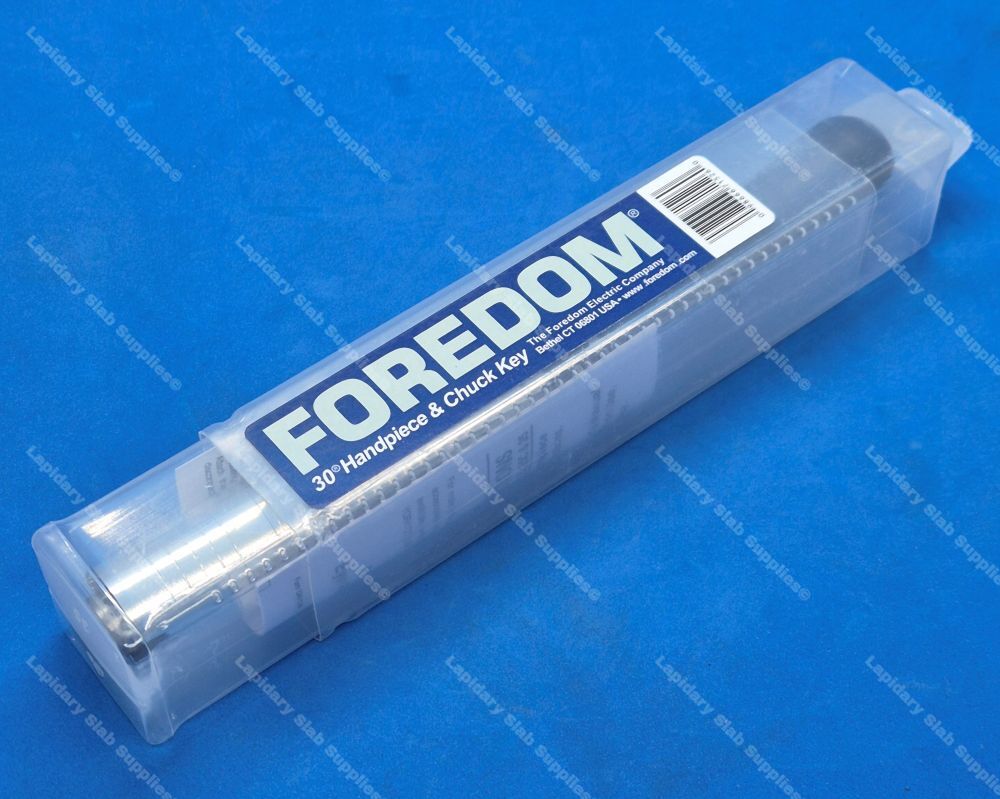

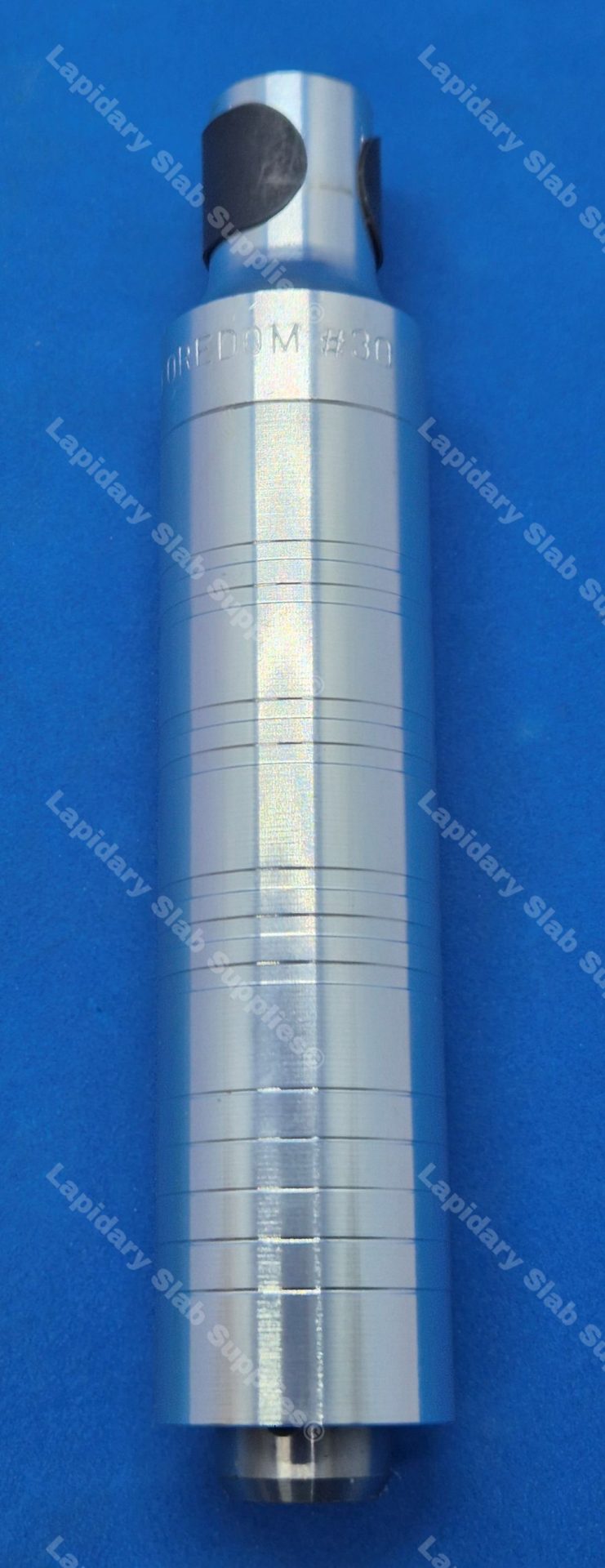

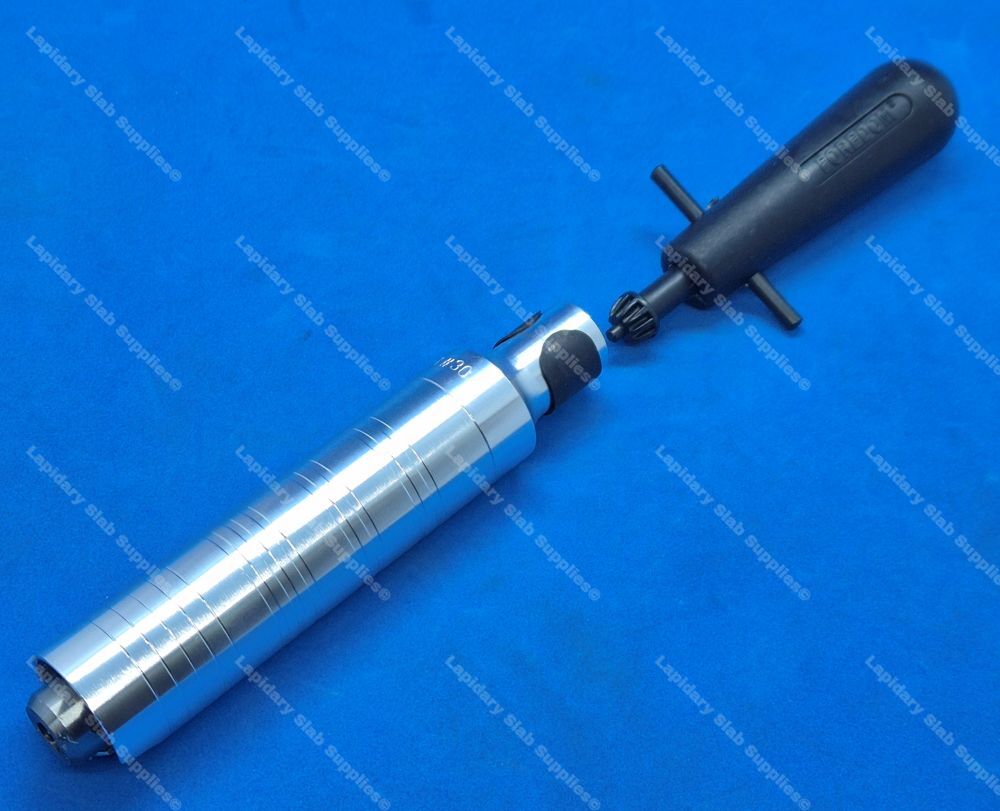

FOREDOM 30 Handpiece & Chuck Key

Instructions:

• It is important to check the sheath and shaft tip and properly adjust them before you attach this hand piece to your Farcrom Flexible Shaft Power Tool. The tip of the flexible shaft should extend 3/4" beyond the end of the sheath; no more than 7/8" or less than 5/8".
• On the series CC power tools, this adjustment is made by loosening the set screw in the motor connector and moving the sheath in or out while the motor and shaft/sheath assembly are fully extended and straight while hanging or on a flat surface. When the correct adjustment is made, tighten the set screw in the motor connector.

Attaching Hand Piece to Flexible Shaft:

• Attach the hand piece by pushing it on the grooved QD (quick disconnecting) fitting on the sheath. Be sure that the keyed tip of the flexible haft is properly lined up with the slot in the hand piece shaft connector by looking into the rear of the hand piece before pushing it on. IF it is not in line, turn the hand piece to the correct position.

Please wear appropriate safety gear when using the FOREDOM chuck key.
